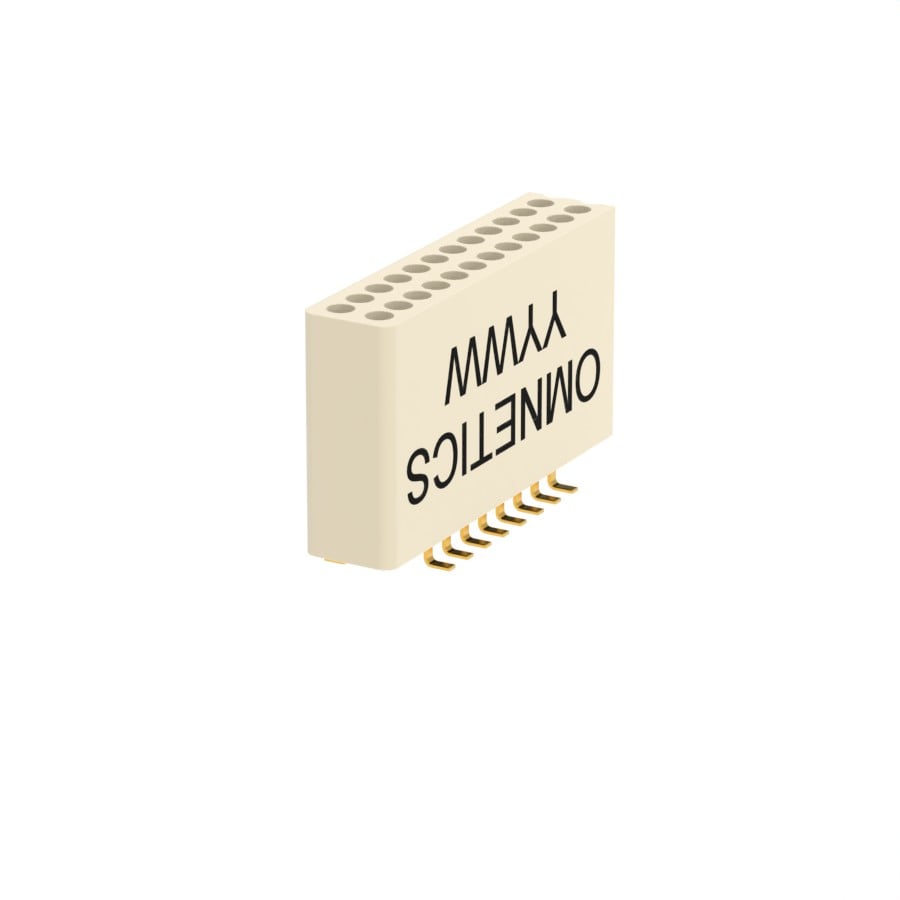

Omnetics A79018-001
Images are for reference only
Manufacturer
Manufacturer No
A79018-001
Availability
In Stock
Packaging
Case
Description
NANO 18 PIN MALE SMT W/ 6 GUIDE
Detailed Description
Connector Header Surface Mount 18 position 0.025" (0.64mm)
Datasheet
Payment
Delivery
Mfr
Omnetics
Style
Board to Cable/Wire
Series
Nano Strip
Features
Guide Pin
Packaging
Case
Shrouding
Shrouded - 4 Wall
Termination
Solder
Applications
-
Contact Type
Male Pin
Contact Shape
Circular
Mounting Type
Surface Mount
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.025" (0.64mm)
Voltage Rating
-
Contact Material
Beryllium Copper
Insulation Color
Natural
Insulation Height
0.170" (4.32mm)
Ingress Protection
-
Insulation Material
Thermoplastic
Number of Positions
18
Row Spacing - Mating
0.030" (0.76mm)
Contact Finish - Post
Tin-Lead
Contact Length - Post
-
Current Rating (Amps)
1A per Contact
Operating Temperature
-55°C ~ 125°C
Mated Stacking Heights
-
Overall Contact Length
-
Contact Finish - Mating
Gold
Contact Length - Mating
-
Number of Positions Loaded
All
Material Flammability Rating
-
Contact Finish Thickness - Post
-
Contact Finish Thickness - Mating
50.0µin (1.27µm)
| Attribute | Value |
|---|---|
| Mfr | Omnetics |
| Style | Board to Cable/Wire |
| Series | Nano Strip |
| Features | Guide Pin |
| Packaging | Case |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | - |
| Contact Type | Male Pin |
| Contact Shape | Circular |
| Mounting Type | Surface Mount |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.025" (0.64mm) |
| Voltage Rating | - |
| Contact Material | Beryllium Copper |
| Insulation Color | Natural |
| Insulation Height | 0.170" (4.32mm) |
| Ingress Protection | - |
| Insulation Material | Thermoplastic |
| Number of Positions | 18 |
| Row Spacing - Mating | 0.030" (0.76mm) |
| Contact Finish - Post | Tin-Lead |
| Contact Length - Post | - |
| Current Rating (Amps) | 1A per Contact |
| Operating Temperature | -55°C ~ 125°C |
| Mated Stacking Heights | - |
| Overall Contact Length | - |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | - |
| Number of Positions Loaded | All |
| Material Flammability Rating | - |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 50.0µin (1.27µm) |
