Step1: Product

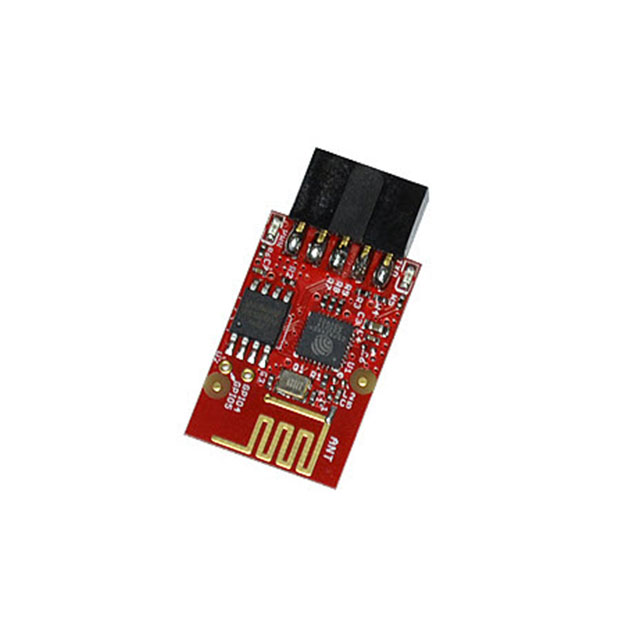

Olimex LTD MOD-WIFI-ESP8266
Images are for reference only
Manufacturer
Manufacturer No
MOD-WIFI-ESP8266
Package
Module
Packaging
Bulk
Description
RF TXRX MOD WIFI THTHROUGH HOLE
Detailed Description
WiFi 802.11b/g/n Transceiver Module 2.4GHz Integrated, Trace Through Hole
Datasheet
Payment
Delivery
Mfr
Olimex LTD
Series
-
Protocol
802.11b/g/n
Data Rate
54Mbps
Frequency
2.4GHz
Packaging
Bulk
Modulation
64QAM, BPSK, CCK, OFDM
Memory Size
2MB
Sensitivity
-98dBm
Antenna Type
Integrated, Trace
Mounting Type
Through Hole
Package / Case
Module
Power - Output
19.5dBm
Voltage - Supply
1.7V ~ 3.6V
Serial Interfaces
I2C, SDIO, SPI, UART
RF Family/Standard
WiFi
Utilized IC / Part
-
Base Product Number
MOD-WIFI
Current - Receiving
60mA ~ 62mA
DigiKey Programmable
Not Verified
Operating Temperature
-20°C ~ 100°C
Current - Transmitting
135mA ~ 215mA
| Attribute | Value |
|---|---|
| Mfr | Olimex LTD |
| Series | - |
| Protocol | 802.11b/g/n |
| Data Rate | 54Mbps |
| Frequency | 2.4GHz |
| Packaging | Bulk |
| Modulation | 64QAM, BPSK, CCK, OFDM |
| Memory Size | 2MB |
| Sensitivity | -98dBm |
| Antenna Type | Integrated, Trace |
| Mounting Type | Through Hole |
| Package / Case | Module |
| Power - Output | 19.5dBm |
| Voltage - Supply | 1.7V ~ 3.6V |
| Serial Interfaces | I2C, SDIO, SPI, UART |
| RF Family/Standard | WiFi |
| Utilized IC / Part | - |
| Base Product Number | MOD-WIFI |
| Current - Receiving | 60mA ~ 62mA |
| DigiKey Programmable | Not Verified |
| Operating Temperature | -20°C ~ 100°C |
| Current - Transmitting | 135mA ~ 215mA |
