Step1: Product
Ohmite ARF500 10R J

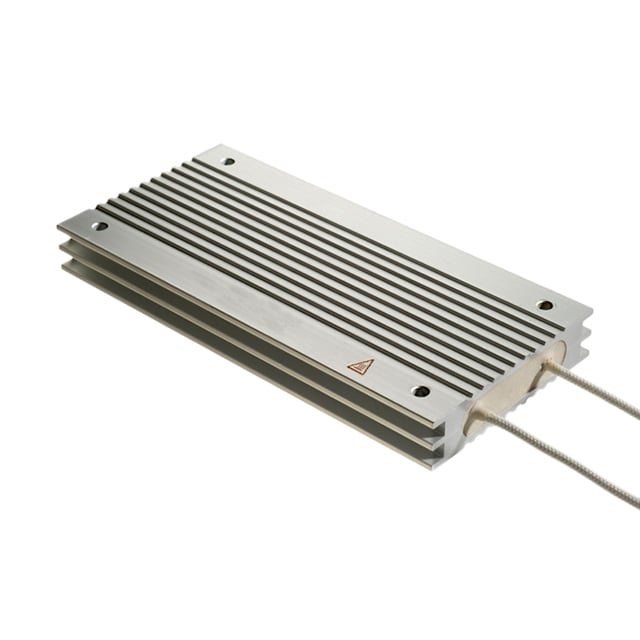

Images are for reference only
Manufacturer
Manufacturer No
ARF500 10R J
Availability
In Stock
Package
Rectangular Case
Packaging
Bulk
Description
500 WATTS LOW PROFILE METAL CLAD
Detailed Description
10 Ohms ±5% 500W Wirewound Chassis Mount Resistor
Datasheet
Payment
Delivery
Mfr
Ohmite
Series
ARF
Features
Pulse Withstanding
Packaging
Bulk
Tolerance
±5%
Lead Style
Wire Leads
Resistance
10 Ohms
Composition
Wirewound
Failure Rate
-
Power (Watts)
500W
Package / Case
Rectangular Case
Mounting Feature
Screw Holes
Size / Dimension
10.630" L x 3.110" W (270.00mm x 79.00mm)
Coating, Housing Type
Aluminum
Height - Seated (Max)
0.728" (18.50mm)
Operating Temperature
0°C ~ 200°C
Temperature Coefficient
±150ppm/°C
| Attribute | Value |
|---|---|
| Mfr | Ohmite |
| Series | ARF |
| Features | Pulse Withstanding |
| Packaging | Bulk |
| Tolerance | ±5% |
| Lead Style | Wire Leads |
| Resistance | 10 Ohms |
| Composition | Wirewound |
| Failure Rate | - |
| Power (Watts) | 500W |
| Package / Case | Rectangular Case |
| Mounting Feature | Screw Holes |
| Size / Dimension | 10.630" L x 3.110" W (270.00mm x 79.00mm) |
| Coating, Housing Type | Aluminum |
| Height - Seated (Max) | 0.728" (18.50mm) |
| Operating Temperature | 0°C ~ 200°C |
| Temperature Coefficient | ±150ppm/°C |
