Step1: Product

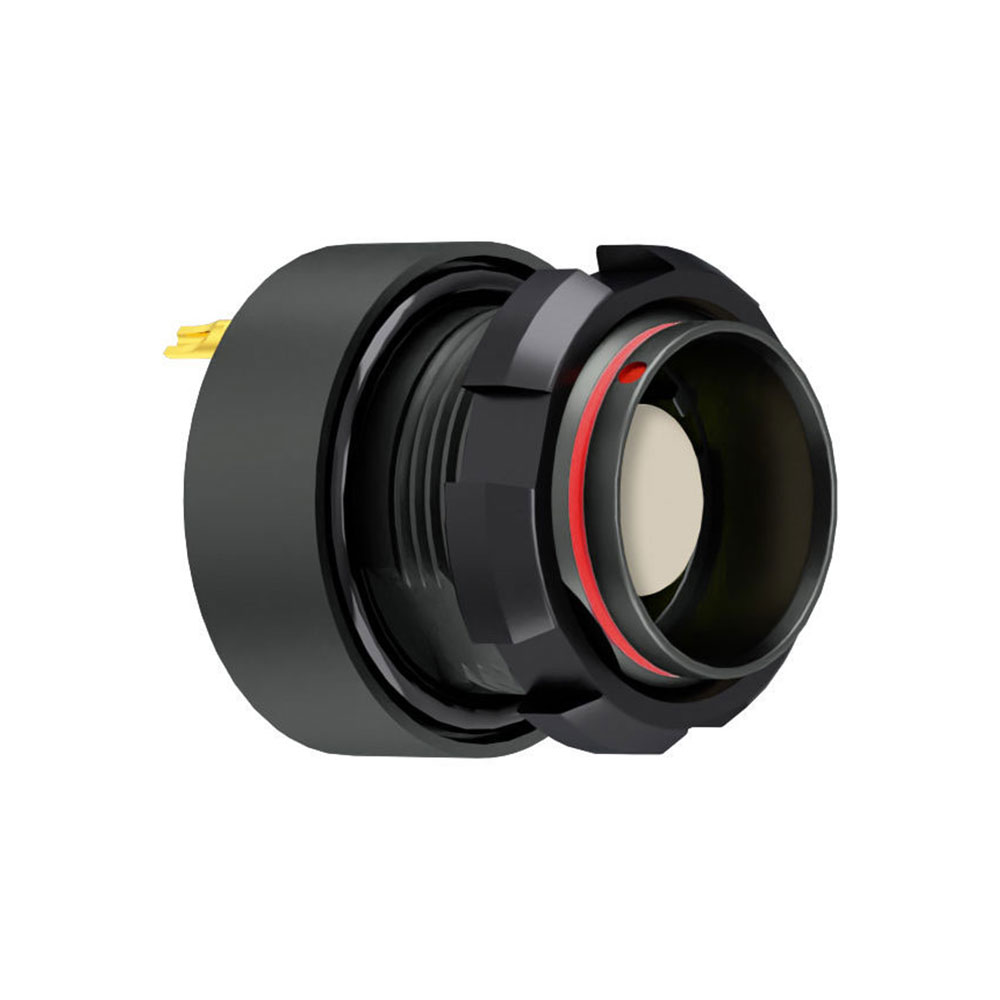

ODU GK0WBM-P07WFG0-000L
Images are for reference only
Manufacturer
Manufacturer No
GK0WBM-P07WFG0-000L
Packaging
Bulk
Description
ODU AMC HD RECEPTACLE FOR REAR P
Detailed Description
7 Position Circular Connector Receptacle, Female Sockets Solder Cup
Datasheet
Payment
Delivery
Mfr
ODU
Color
Silver
Series
ODU AMC® High-Density
Features
-
Packaging
Bulk
Shielding
Shielded
Orientation
B
Termination
Solder Cup
Applications
Industrial, Medical, Military, Testing Equipment & Measurement
Shell Finish
Ruthenium over Electroless Nickel
Cable Opening
0.126" ~ 0.276" (3.20mm ~ 7.00mm)
Mounting Type
Panel Mount
Connector Type
Receptacle, Female Sockets
Fastening Type
Push-Pull, Detent Lock
Shell Material
Copper Alloy
Voltage Rating
-
Insert Material
Polyetheretherketone (PEEK)
Shell Size, MIL
-
Contact Material
Copper Alloy
Mounting Feature
Bulkhead - Front Side Nut
Primary Material
Metal
Ingress Protection
IP68/IP69K - Dust Tight, Water Resistant, Waterproof
Number of Positions
7
Shell Size - Insert
0
Current Rating (Amps)
5A
Operating Temperature
-51°C ~ 125°C
Contact Finish - Mating
Gold
Backshell Material, Plating
-
Material Flammability Rating
-
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | ODU |
| Color | Silver |
| Series | ODU AMC® High-Density |
| Features | - |
| Packaging | Bulk |
| Shielding | Shielded |
| Orientation | B |
| Termination | Solder Cup |
| Applications | Industrial, Medical, Military, Testing Equipment & Measurement |
| Shell Finish | Ruthenium over Electroless Nickel |
| Cable Opening | 0.126" ~ 0.276" (3.20mm ~ 7.00mm) |
| Mounting Type | Panel Mount |
| Connector Type | Receptacle, Female Sockets |
| Fastening Type | Push-Pull, Detent Lock |
| Shell Material | Copper Alloy |
| Voltage Rating | - |
| Insert Material | Polyetheretherketone (PEEK) |
| Shell Size, MIL | - |
| Contact Material | Copper Alloy |
| Mounting Feature | Bulkhead - Front Side Nut |
| Primary Material | Metal |
| Ingress Protection | IP68/IP69K - Dust Tight, Water Resistant, Waterproof |
| Number of Positions | 7 |
| Shell Size - Insert | 0 |
| Current Rating (Amps) | 5A |
| Operating Temperature | -51°C ~ 125°C |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | - |
| Material Flammability Rating | - |
| Contact Finish Thickness - Mating | - |
