NXP USA Inc. PTVS12VZ1USK315

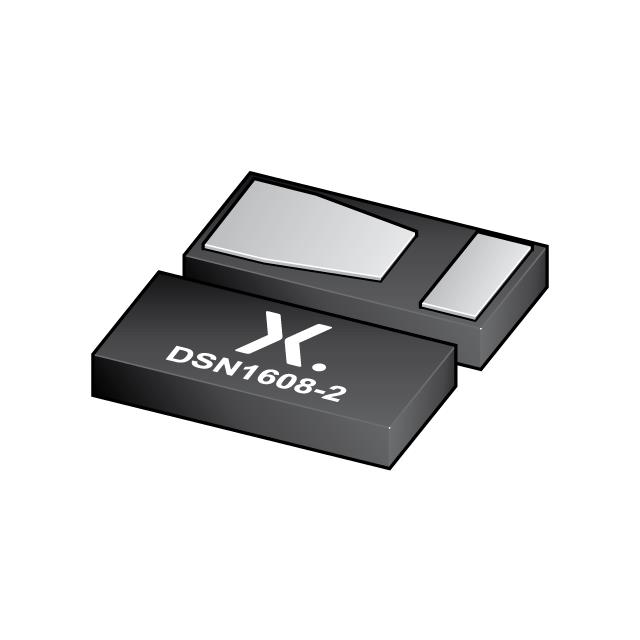

NXP USA Inc. PTVS12VZ1USK315 electronic component product image

Image is only for reference

Manufacturer
Manufacturer No
PTVS12VZ1USK315
Availability
In Stock
Package
0603 (1608 Metric)
Packaging
Bulk
Description
TVS DIODE 12VWM 21.8VC DSN16082
Detailed Description
21.8V Clamp 10.5A Ipp Tvs Diode Surface Mount DSN1608-2
Payment
PayPalEast West BankVISAMastercardWestern Union
Delivery
DHLFedExUPSTNT
AS9120
ISO 13485
ERAI Member
VDE
ISO 9001
ISO 14001
Five-Star After-Sales Service Certification
Bavarian Chips Alliance
UKAS Management Systems
ANAB ISO/IEC 17021
IAF
Mfr
NXP USA Inc.
Type
Zener
Series
-
Packaging
Bulk
Applications
General Purpose
Mounting Type
Surface Mount
Package / Case
0603 (1608 Metric)
Power - Peak Pulse
1900W (1.9kW)
Operating Temperature
-40°C ~ 125°C (TA)
Power Line Protection
No
Capacitance @ Frequency
430pF @ 1MHz
Supplier Device Package
DSN1608-2
Unidirectional Channels
1
Voltage - Breakdown (Min)
13.3V
Voltage - Clamping (Max) @ Ipp
21.8V
Voltage - Reverse Standoff (Typ)
12V (Max)
Current - Peak Pulse (10/1000µs)
10.5A
AttributeValue
MfrNXP USA Inc.
TypeZener
Series-
PackagingBulk
ApplicationsGeneral Purpose
Mounting TypeSurface Mount
Package / Case0603 (1608 Metric)
Power - Peak Pulse1900W (1.9kW)
Operating Temperature-40°C ~ 125°C (TA)
Power Line ProtectionNo
Capacitance @ Frequency430pF @ 1MHz
Supplier Device PackageDSN1608-2
Unidirectional Channels1
Voltage - Breakdown (Min)13.3V
Voltage - Clamping (Max) @ Ipp21.8V
Voltage - Reverse Standoff (Typ)12V (Max)
Current - Peak Pulse (10/1000µs)10.5A
