Step1: Product

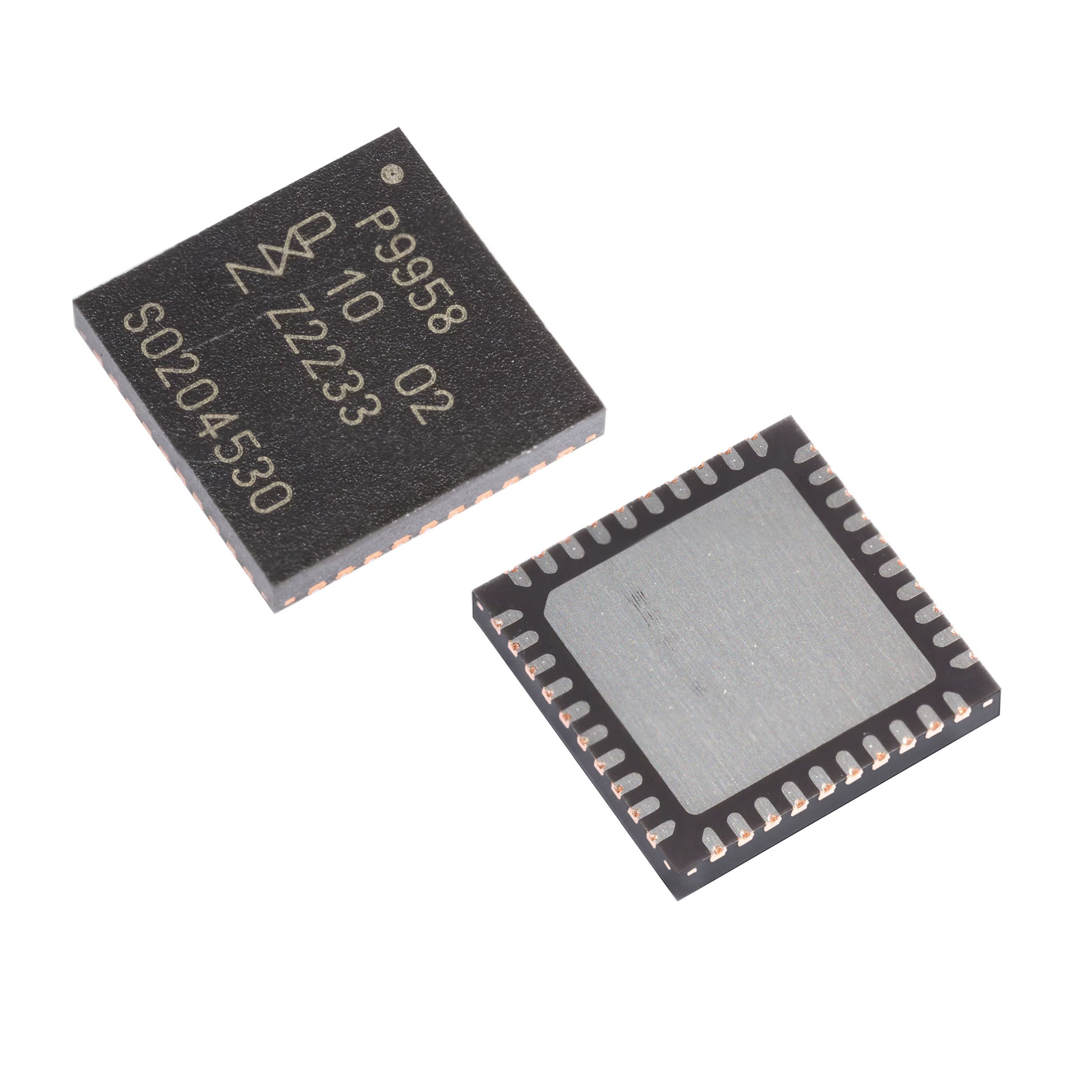

NXP USA Inc. PCA9958HN/Q900Y
Images are for reference only
Manufacturer
Manufacturer No
PCA9958HN/Q900Y
Package
40-VFQFN Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
IC LED DVR LINEAR 63MA 40HVQFN
Detailed Description
LED Driver IC 24 Output Linear Constant Current PWM, SPI Dimming 63mA 40-HVQFN (6x6)
Datasheet
Payment
Delivery
Type
Linear
Grade
Automotive
Series
-
Dimming
PWM, SPI
Topology
Constant Current
Frequency
31.25kHz
Packaging
Tape & Reel (TR); Cut Tape (CT)
Applications
General Purpose
Manufacturer
NXP USA Inc.
Mounting Type
Surface Mount, Wettable Flank
Qualification
AEC-Q100
Package / Case
40-VFQFN Exposed Pad
Voltage - Output
-
Number of Outputs
24
Internal Switch(s)
No
Operating Temperature
-40°C ~ 125°C (TA)
Voltage - Supply (Max)
5.5V
Voltage - Supply (Min)
2.7V
Supplier Device Package
40-HVQFN (6x6)
Current - Output / Channel
63mA
| Attribute | Value |
|---|---|
| Type | Linear |
| Grade | Automotive |
| Series | - |
| Dimming | PWM, SPI |
| Topology | Constant Current |
| Frequency | 31.25kHz |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Applications | General Purpose |
| Manufacturer | NXP USA Inc. |
| Mounting Type | Surface Mount, Wettable Flank |
| Qualification | AEC-Q100 |
| Package / Case | 40-VFQFN Exposed Pad |
| Voltage - Output | - |
| Number of Outputs | 24 |
| Internal Switch(s) | No |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Supply (Max) | 5.5V |
| Voltage - Supply (Min) | 2.7V |
| Supplier Device Package | 40-HVQFN (6x6) |
| Current - Output / Channel | 63mA |
