Step1: Product

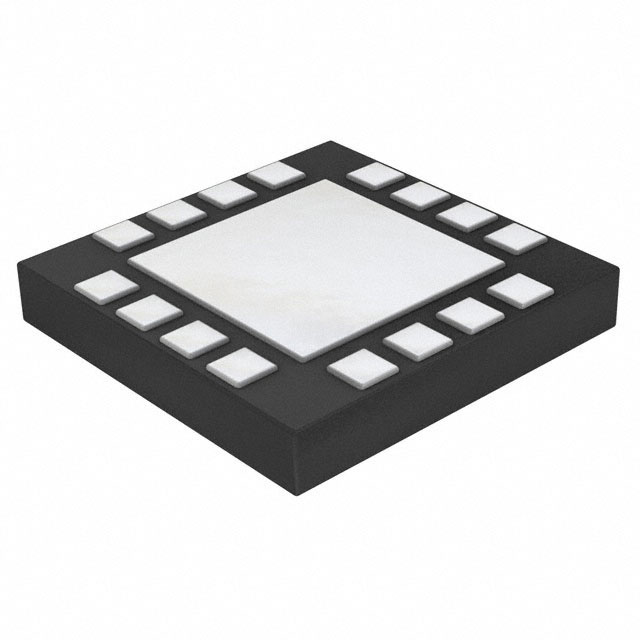

NXP USA Inc. NX3L4051HRZ
Images are for reference only
Manufacturer
Manufacturer No
NX3L4051HRZ
Quantity
90
Availability
In Stock
Package
16-XFQFN Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
IC MUX 8:1 900MOHM 16HXQFN
Detailed Description
1 Circuit IC Switch 8:1 900mOhm 16-HXQFN (3x3)
Datasheet
Payment
Delivery
Grade
Automotive
Series
-
Crosstalk
-90dB @ 100kHz
Packaging
Tape & Reel (TR); Cut Tape (CT)
Manufacturer
NXP USA Inc.
Mounting Type
Surface Mount
Qualification
AEC-Q100
-3db Bandwidth
15MHz
Package / Case
16-XFQFN Exposed Pad
Switch Circuit
-
Charge Injection
15pC
Number of Circuits
1
Base Product Number
NX3L4051
Operating Temperature
-40°C ~ 125°C (TA)
Supplier Device Package
16-HXQFN (3x3)
On-State Resistance (Max)
900mOhm
Voltage - Supply, Dual (V±)
-
Switch Time (Ton, Toff) (Max)
45ns, 25ns
Voltage - Supply, Single (V+)
1.4V ~ 4.3V
Current - Leakage (IS(off)) (Max)
10nA
Multiplexer/Demultiplexer Circuit
8:1
Channel-to-Channel Matching (ΔRon)
70mOhm
Channel Capacitance (CS(off), CD(off))
35pF
| Attribute | Value |
|---|---|
| Grade | Automotive |
| Series | - |
| Crosstalk | -90dB @ 100kHz |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Manufacturer | NXP USA Inc. |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q100 |
| -3db Bandwidth | 15MHz |
| Package / Case | 16-XFQFN Exposed Pad |
| Switch Circuit | - |
| Charge Injection | 15pC |
| Number of Circuits | 1 |
| Base Product Number | NX3L4051 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Supplier Device Package | 16-HXQFN (3x3) |
| On-State Resistance (Max) | 900mOhm |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 45ns, 25ns |
| Voltage - Supply, Single (V+) | 1.4V ~ 4.3V |
| Current - Leakage (IS(off)) (Max) | 10nA |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Channel-to-Channel Matching (ΔRon) | 70mOhm |
| Channel Capacitance (CS(off), CD(off)) | 35pF |
