Step1: Product
NXP USA Inc. BFS540,115

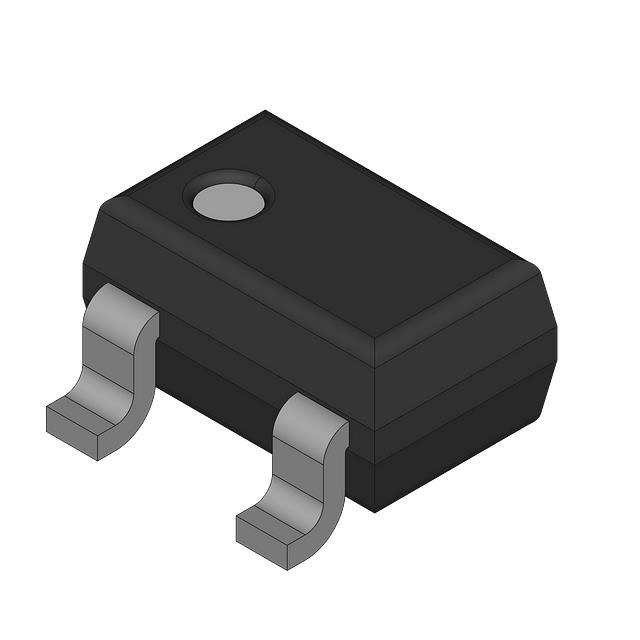

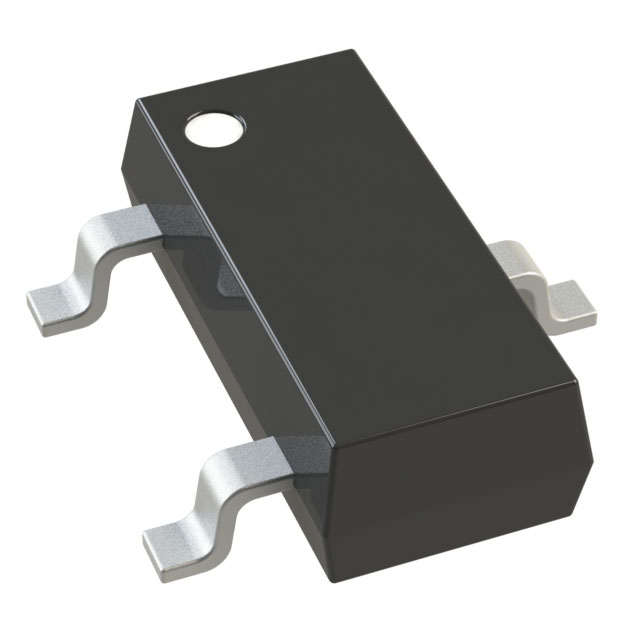

Images are for reference only
Manufacturer
Manufacturer No
BFS540,115
Package
SC-70, SOT-323
Packaging
Tape & Reel (TR)
Description
RF TRANS NPN 15V 9GHZ SC-70
Detailed Description
RF Transistor NPN 15V 120mA 9GHz 500mW Surface Mount SC-70
Datasheet
Payment
Delivery
Gain
-
Series
-
Packaging
Tape & Reel (TR)
Power - Max
500mW
Manufacturer
NXP USA Inc.
Mounting Type
Surface Mount
Package / Case
SC-70, SOT-323
Transistor Type
NPN
Base Product Number
BFS54
Operating Temperature
175°C (TJ)
Frequency - Transition
9GHz
Supplier Device Package
SC-70
Noise Figure (dB Typ @ f)
1.3dB ~ 1.7dB @ 9MHz
Current - Collector (Ic) (Max)
120mA
DC Current Gain (hFE) (Min) @ Ic, Vce
100 @ 40mA, 8V
Voltage - Collector Emitter Breakdown (Max)
15V
| Attribute | Value |
|---|---|
| Gain | - |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Power - Max | 500mW |
| Manufacturer | NXP USA Inc. |
| Mounting Type | Surface Mount |
| Package / Case | SC-70, SOT-323 |
| Transistor Type | NPN |
| Base Product Number | BFS54 |
| Operating Temperature | 175°C (TJ) |
| Frequency - Transition | 9GHz |
| Supplier Device Package | SC-70 |
| Noise Figure (dB Typ @ f) | 1.3dB ~ 1.7dB @ 9MHz |
| Current - Collector (Ic) (Max) | 120mA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 40mA, 8V |
| Voltage - Collector Emitter Breakdown (Max) | 15V |
