Step1: Product
NXP Semiconductors PTN38007EWY
Images are for reference only
Manufacturer
Manufacturer No
PTN38007EWY
Availability
In Stock

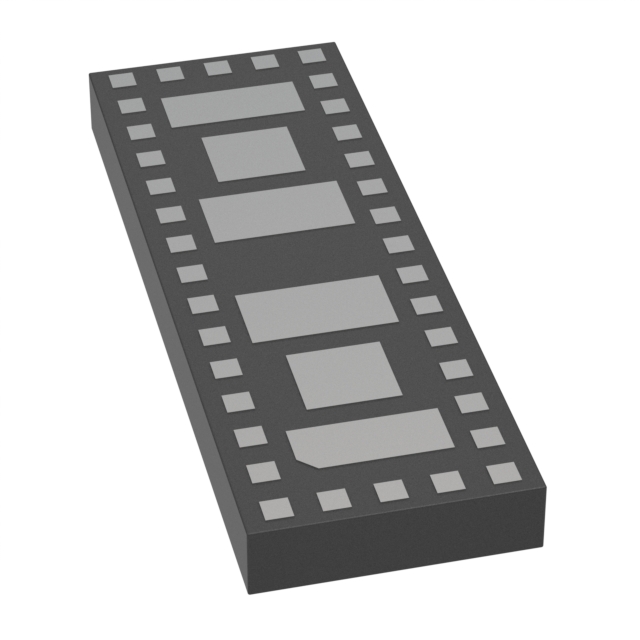

Package
36-WFLGA Exposed Pad
Packaging
Bulk
Description
PTN38007 - Multiprotocol USB 4 2
Detailed Description
4 Channel 20Gbps 36-HWFLGA (2.1x6)
Datasheet
Payment
Delivery
Type
-
Input
Differential
Output
Differential
Series
-
Packaging
Bulk
Delay Time
70ps
Applications
DisplayPort, USB Type C
Manufacturer
NXP Semiconductors
Package / Case
36-WFLGA Exposed Pad
Data Rate (Max)
20Gbps
Current - Supply
250mA
Voltage - Supply
1.7V ~ 1.9V
Number of Channels
4
Capacitance - Input
10 pF
Signal Conditioning
Input Equalization, Output Pre-Emphasis
Operating Temperature
-20°C ~ 85°C (TA)
Supplier Device Package
36-HWFLGA (2.1x6)
| Attribute | Value |
|---|---|
| Type | - |
| Input | Differential |
| Output | Differential |
| Series | - |
| Packaging | Bulk |
| Delay Time | 70ps |
| Applications | DisplayPort, USB Type C |
| Manufacturer | NXP Semiconductors |
| Package / Case | 36-WFLGA Exposed Pad |
| Data Rate (Max) | 20Gbps |
| Current - Supply | 250mA |
| Voltage - Supply | 1.7V ~ 1.9V |
| Number of Channels | 4 |
| Capacitance - Input | 10 pF |
| Signal Conditioning | Input Equalization, Output Pre-Emphasis |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Supplier Device Package | 36-HWFLGA (2.1x6) |
