NovuSem NC1M120C12WDCU

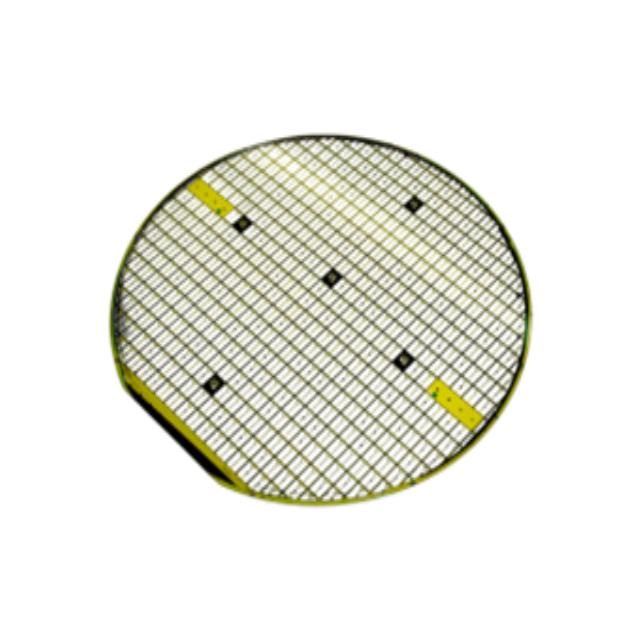

Images are for reference only

Manufacturer

NovuSem

Manufacturer No

NC1M120C12WDCU

Package

Die

Packaging

Tray

Description

SiC MOS Wafer 12mOhm 1200V NiPdA

Detailed Description

1200 V 214A (Tc) Surface Mount Wafer

Datasheet

NC1M120C12WDCU

Payment

Delivery

Mfr

NovuSem

Series

NC1M

Packaging

Tray

Vgs (Max)

+22V, -8V

Technology

SiCFET (Silicon Carbide)

Mounting Type

Surface Mount

Package / Case

Die

Vgs(th) (Max) @ Id

3.5V @ 40mA

Rds On (Max) @ Id, Vgs

12mOhm @ 20A, 20V

Supplier Device Package

Wafer

Drain to Source Voltage (Vdss)

1200 V

Input Capacitance (Ciss) (Max) @ Vds

8330 pF @ 1000 V

Drive Voltage (Max Rds On, Min Rds On)

20V

Current - Continuous Drain (Id) @ 25°C

214A (Tc)

Attribute	Value
Mfr	NovuSem
Series	NC1M
Packaging	Tray
Vgs (Max)	+22V, -8V
Technology	SiCFET (Silicon Carbide)
Mounting Type	Surface Mount
Package / Case	Die
Vgs(th) (Max) @ Id	3.5V @ 40mA
Rds On (Max) @ Id, Vgs	12mOhm @ 20A, 20V
Supplier Device Package	Wafer
Drain to Source Voltage (Vdss)	1200 V
Input Capacitance (Ciss) (Max) @ Vds	8330 pF @ 1000 V
Drive Voltage (Max Rds On, Min Rds On)	20V
Current - Continuous Drain (Id) @ 25°C	214A (Tc)
