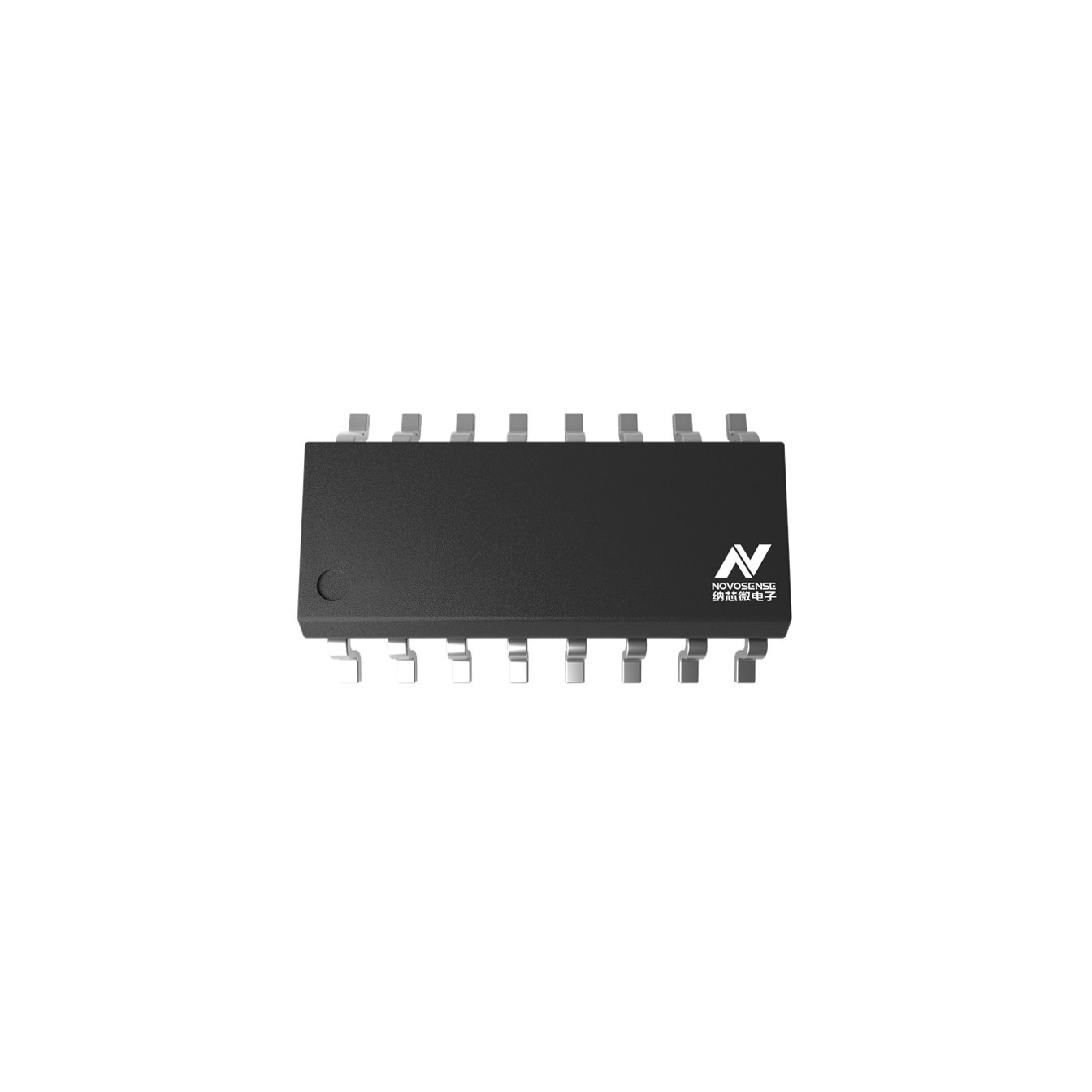

NOVOSENSE NSI6602NC-Q1SWKR
Images are for reference only
Manufacturer
Manufacturer No
NSI6602NC-Q1SWKR
Package
14-SOIC (0.295", 7.50mm Width)
Packaging
Tape & Reel (TR)
Description
2-CHANNEL ISO GATE DRIVER
Detailed Description
5A, 5A Gate Driver Capacitive Coupling 5700Vrms 1 Channel 14-SOIC
Datasheet
Payment
Delivery
Mfr
NOVOSENSE
Grade
-
Series
-
Packaging
Tape & Reel (TR)
Technology
Capacitive Coupling
Mounting Type
Surface Mount
Qualification
-
Package / Case
14-SOIC (0.295", 7.50mm Width)
Approval Agency
CQC, UL, VDE
Number of Channels
1
Voltage - Isolation
5700Vrms
Current - Peak Output
5A, 5A
Operating Temperature
-40°C ~ 150°C (TJ)
Rise / Fall Time (Typ)
9ns, 8ns
Supplier Device Package
14-SOIC
Voltage - Output Supply
9.4V ~ 24V
Current - Output High, Low
3mA, 3mA
Pulse Width Distortion (Max)
25ns
Voltage - Forward (Vf) (Typ)
-
Propagation Delay tpLH / tpHL (Max)
80ns, 80ns
Common Mode Transient Immunity (Min)
150V/ns
| Attribute | Value |
|---|---|
| Mfr | NOVOSENSE |
| Grade | - |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Technology | Capacitive Coupling |
| Mounting Type | Surface Mount |
| Qualification | - |
| Package / Case | 14-SOIC (0.295", 7.50mm Width) |
| Approval Agency | CQC, UL, VDE |
| Number of Channels | 1 |
| Voltage - Isolation | 5700Vrms |
| Current - Peak Output | 5A, 5A |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Rise / Fall Time (Typ) | 9ns, 8ns |
| Supplier Device Package | 14-SOIC |
| Voltage - Output Supply | 9.4V ~ 24V |
| Current - Output High, Low | 3mA, 3mA |
| Pulse Width Distortion (Max) | 25ns |
| Voltage - Forward (Vf) (Typ) | - |
| Propagation Delay tpLH / tpHL (Max) | 80ns, 80ns |
| Common Mode Transient Immunity (Min) | 150V/ns |
