Step1: Product

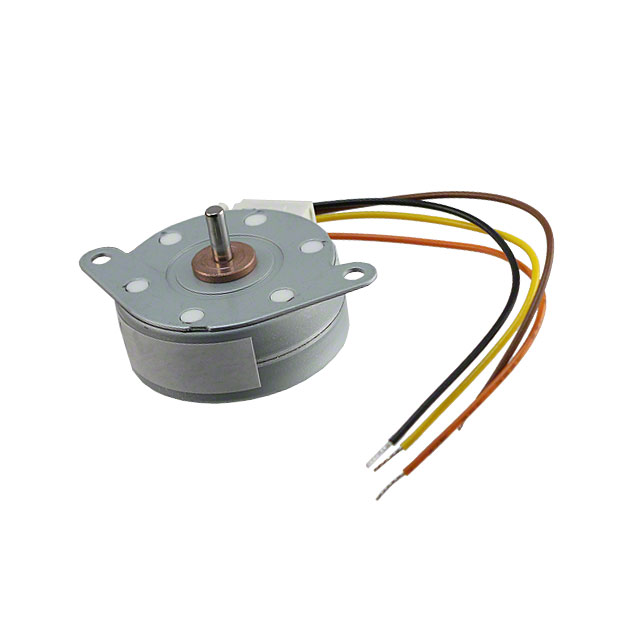

NMB Technologies Corporation PM35S-048-HHC6
Images are for reference only
Manufacturer
Manufacturer No
PM35S-048-HHC6
Packaging
Bulk
Description
STEPPER MOTOR PM BIPOLAR 24V
Detailed Description
Bipolar Stepper Motor Permanent Magnet Frame Size 48.0 Step 600 mA 24VDC
Datasheet
Payment
Delivery
Mfr
NMB Technologies Corporation
Type
Permanent Magnet
Series
PM
Weight
-
Accuracy
-
Features
Round Shaft
Coil Type
Bipolar
Packaging
Bulk
Step Angle
7.5°
Rotor Inertia
-
Approval Agency
-
Coil Resistance
5.5 Ohms
Voltage - Rated
24VDC
Diameter - Shaft
0.118" (3.00mm)
Size / Dimension
Round - 1.378" Dia (35.00mm)
Termination Style
Wire Leads
Base Product Number
PM35S
Steps per Revolution
48.0
Current Rating (Amps)
600 mA
Mounting Hole Spacing
1.650" (42.00mm)
Operating Temperature
-
Length - Shaft and Bearing
0.394" (10.00mm)
Torque - Holding (oz-in / mNm)
6.94 / 49
| Attribute | Value |
|---|---|
| Mfr | NMB Technologies Corporation |
| Type | Permanent Magnet |
| Series | PM |
| Weight | - |
| Accuracy | - |
| Features | Round Shaft |
| Coil Type | Bipolar |
| Packaging | Bulk |
| Step Angle | 7.5° |
| Rotor Inertia | - |
| Approval Agency | - |
| Coil Resistance | 5.5 Ohms |
| Voltage - Rated | 24VDC |
| Diameter - Shaft | 0.118" (3.00mm) |
| Size / Dimension | Round - 1.378" Dia (35.00mm) |
| Termination Style | Wire Leads |
| Base Product Number | PM35S |
| Steps per Revolution | 48.0 |
| Current Rating (Amps) | 600 mA |
| Mounting Hole Spacing | 1.650" (42.00mm) |
| Operating Temperature | - |
| Length - Shaft and Bearing | 0.394" (10.00mm) |
| Torque - Holding (oz-in / mNm) | 6.94 / 49 |
