Step1: Product

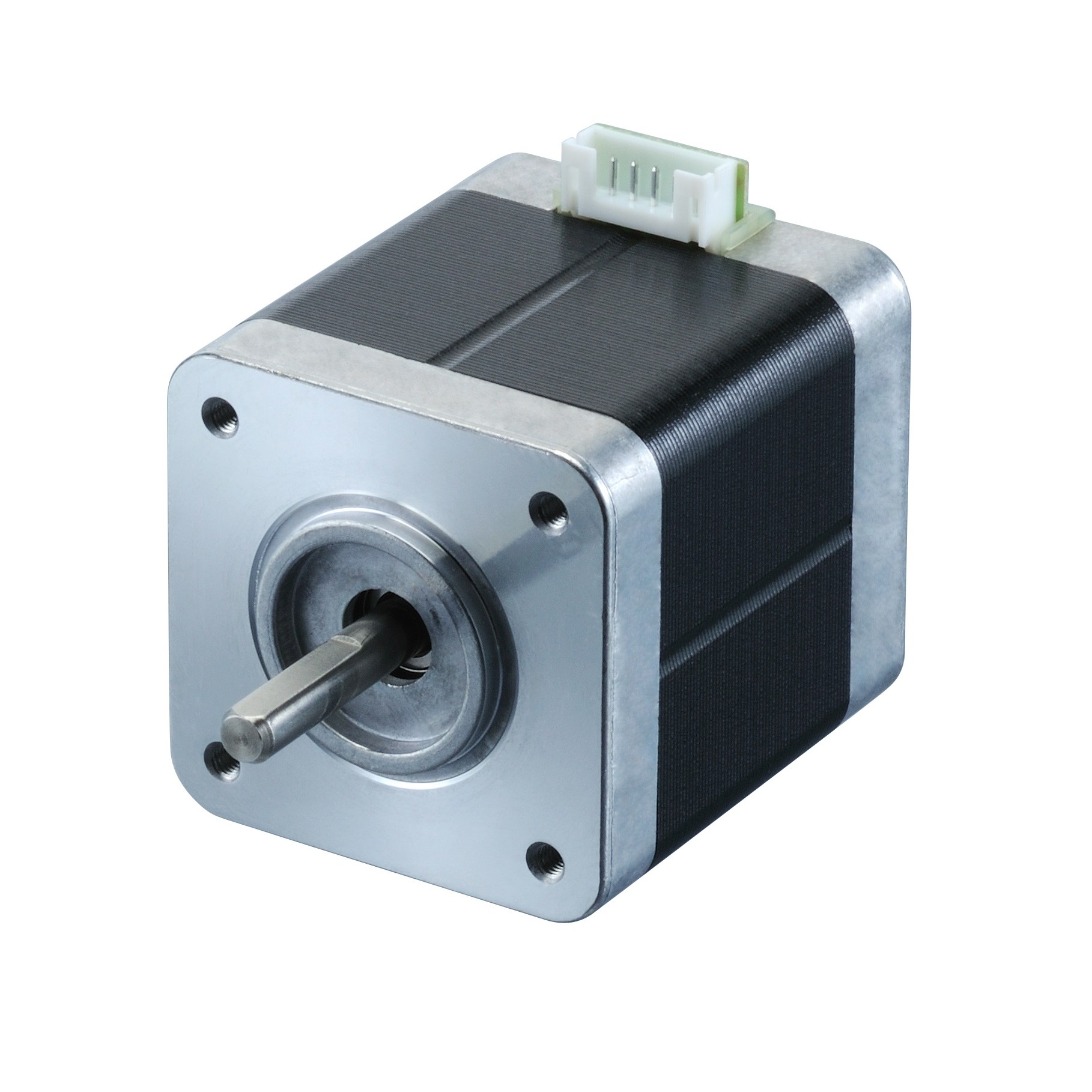

NMB Technologies Corporation 17PM-K449U
Images are for reference only
Manufacturer
Manufacturer No
17PM-K449U
Packaging
Bulk
Description
STEP MOTOR HYBRID UNIPOLAR 24V
Detailed Description
Unipolar Stepper Motor Hybrid Frame Size 17 200.0 Step 1 A 24VDC
Datasheet
Payment
Delivery
Mfr
NMB Technologies Corporation
Type
Hybrid
Series
17PM
Accuracy
-
Features
Round Shaft
Coil Type
Unipolar
Packaging
Bulk
Step Angle
1.8°
Rotor Inertia
75gcm²
Approval Agency
-
Coil Resistance
4.9 Ohms
NEMA Frame Size
17
Voltage - Rated
24VDC
Diameter - Shaft
0.197" (5.00mm)
Size / Dimension
Square - 1.654" x 1.654" (42.00mm x 42.00mm)
Termination Style
Connector
Base Product Number
17PM
Steps per Revolution
200.0
Current Rating (Amps)
1 A
Mounting Hole Spacing
1.220" (31.00mm)
Operating Temperature
-
Length - Shaft and Bearing
0.945" (24.00mm)
Torque - Holding (oz-in / mNm)
56.66 / 400
| Attribute | Value |
|---|---|
| Mfr | NMB Technologies Corporation |
| Type | Hybrid |
| Series | 17PM |
| Accuracy | - |
| Features | Round Shaft |
| Coil Type | Unipolar |
| Packaging | Bulk |
| Step Angle | 1.8° |
| Rotor Inertia | 75gcm² |
| Approval Agency | - |
| Coil Resistance | 4.9 Ohms |
| NEMA Frame Size | 17 |
| Voltage - Rated | 24VDC |
| Diameter - Shaft | 0.197" (5.00mm) |
| Size / Dimension | Square - 1.654" x 1.654" (42.00mm x 42.00mm) |
| Termination Style | Connector |
| Base Product Number | 17PM |
| Steps per Revolution | 200.0 |
| Current Rating (Amps) | 1 A |
| Mounting Hole Spacing | 1.220" (31.00mm) |
| Operating Temperature | - |
| Length - Shaft and Bearing | 0.945" (24.00mm) |
| Torque - Holding (oz-in / mNm) | 56.66 / 400 |
