Step1: Product

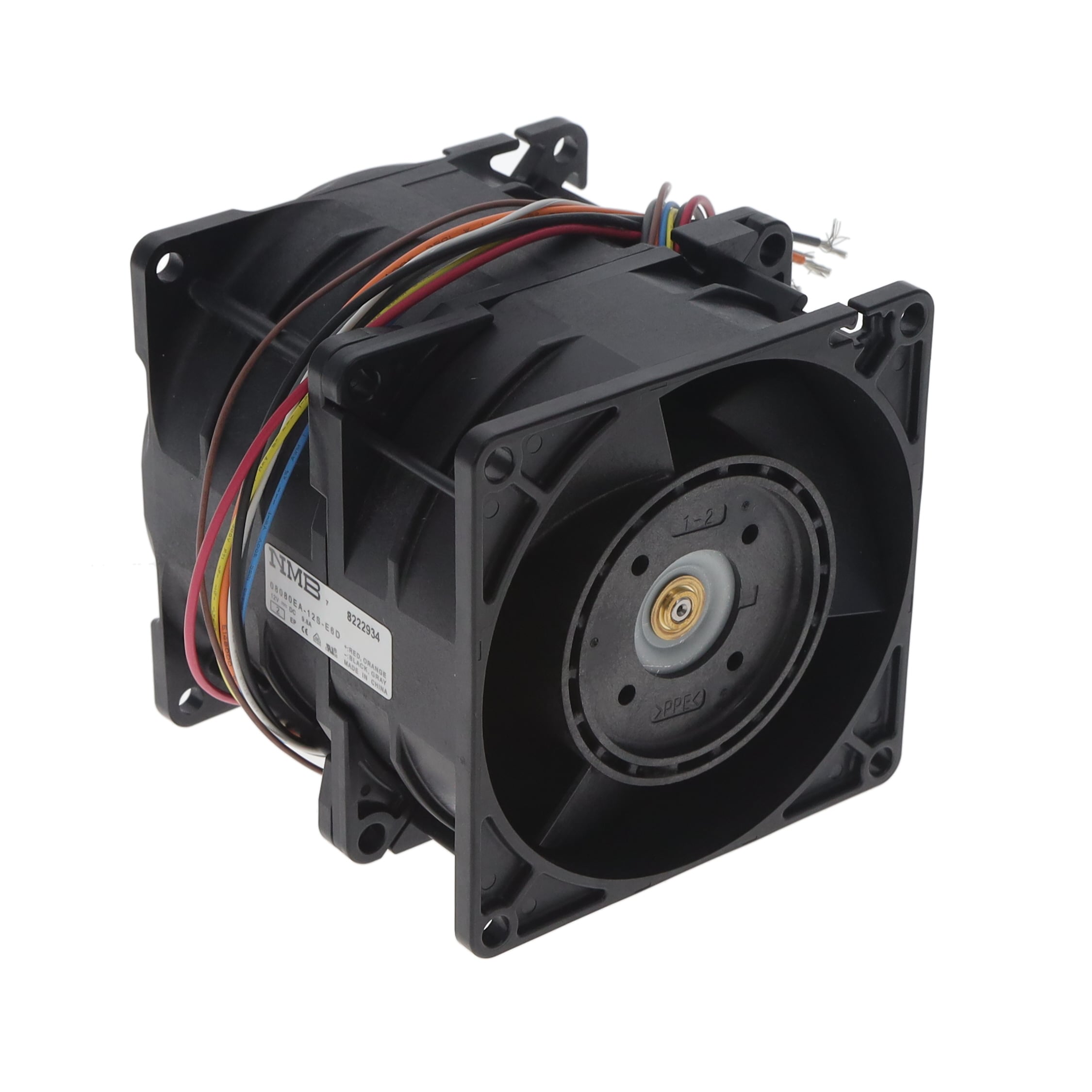

NMB Technologies Corporation 08080EA-12S-E6D-2
Images are for reference only
Manufacturer
Manufacturer No
08080EA-12S-E6D-2
Packaging
Box
Description
80X80X80MM, 12VDC, 15,800/16,300
Detailed Description
Fan Tubeaxial (Dual) 12VDC Square - 80mm L x 80mm H Ball 141.0 CFM (3.95m³/min) 4 Wire Leads
Datasheet
Payment
Delivery
Mfr
NMB Technologies Corporation
RPM
15800 RPM Front, 16300 RPM Rear
Noise
79.0dB(A)
Width
80.00mm
Series
08080EA
Weight
-
Air Flow
141.0 CFM (3.95m³/min)
Fan Type
Tubeaxial (Dual)
Features
Auto Restart, Dual Speed, PWM Control, Speed Sensor (Tach)
Packaging
Box
Termination
4 Wire Leads
Bearing Type
Ball
Power (Watts)
118 W
Voltage Range
10.8 ~ 13.2VDC
Approval Agency
CE, cULus, VDE
Static Pressure
10.000 in H2O (2490.8 Pa)
Voltage - Rated
12VDC
Lifetime @ Temp.
70000 Hrs @ 40°C
Material - Blade
Plastic
Material - Frame
Plastic
Size / Dimension
Square - 80mm L x 80mm H
Ingress Protection
-
Current Rating (Amps)
9.80A
Operating Temperature
14 ~ 140°F (-10 ~ 60°C)
| Attribute | Value |
|---|---|
| Mfr | NMB Technologies Corporation |
| RPM | 15800 RPM Front, 16300 RPM Rear |
| Noise | 79.0dB(A) |
| Width | 80.00mm |
| Series | 08080EA |
| Weight | - |
| Air Flow | 141.0 CFM (3.95m³/min) |
| Fan Type | Tubeaxial (Dual) |
| Features | Auto Restart, Dual Speed, PWM Control, Speed Sensor (Tach) |
| Packaging | Box |
| Termination | 4 Wire Leads |
| Bearing Type | Ball |
| Power (Watts) | 118 W |
| Voltage Range | 10.8 ~ 13.2VDC |
| Approval Agency | CE, cULus, VDE |
| Static Pressure | 10.000 in H2O (2490.8 Pa) |
| Voltage - Rated | 12VDC |
| Lifetime @ Temp. | 70000 Hrs @ 40°C |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Size / Dimension | Square - 80mm L x 80mm H |
| Ingress Protection | - |
| Current Rating (Amps) | 9.80A |
| Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) |
