Step1: Product

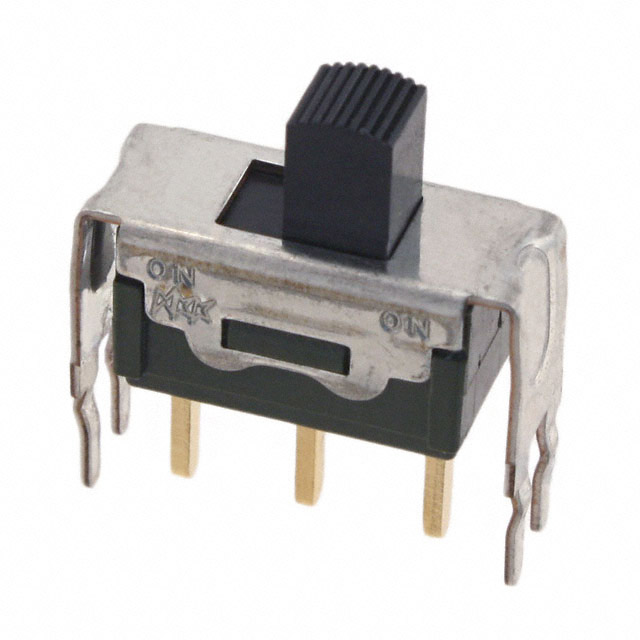

NKK Switches MS12ASG13
Images are for reference only
Manufacturer
Manufacturer No
MS12ASG13
Quantity
50
Availability
In Stock
Packaging
Bulk
Description
MINIATURE SLIDE
Detailed Description
Slide Switch SPDT Through Hole
Datasheet
Payment
Delivery
Series
MS
Circuit
SPDT
Features
Epoxy Sealed Terminals
Packaging
Bulk
Manufacturer
NKK Switches
Actuator Type
Standard
Mounting Type
Through Hole
Switch Travel
2.20mm
Contact Finish
Gold
Contact Timing
Non-Shorting (BBM)
Actuator Length
5.10mm
Electrical Life
50,000 Cycles
Mechanical Life
100,000 Cycles
Operating Force
-
Switch Function
On-On
Contact Material
Copper
Actuator Material
Polybutylene Terephthalate (PBT), Glass Filled
Termination Style
PC Pin
Base Product Number
MS12ASG
Voltage Rating - AC
28 V
Voltage Rating - DC
28 V
Current Rating (Amps)
0.4VA (AC/DC)
Operating Temperature
-30°C ~ 85°C
| Attribute | Value |
|---|---|
| Series | MS |
| Circuit | SPDT |
| Features | Epoxy Sealed Terminals |
| Packaging | Bulk |
| Manufacturer | NKK Switches |
| Actuator Type | Standard |
| Mounting Type | Through Hole |
| Switch Travel | 2.20mm |
| Contact Finish | Gold |
| Contact Timing | Non-Shorting (BBM) |
| Actuator Length | 5.10mm |
| Electrical Life | 50,000 Cycles |
| Mechanical Life | 100,000 Cycles |
| Operating Force | - |
| Switch Function | On-On |
| Contact Material | Copper |
| Actuator Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Termination Style | PC Pin |
| Base Product Number | MS12ASG |
| Voltage Rating - AC | 28 V |
| Voltage Rating - DC | 28 V |
| Current Rating (Amps) | 0.4VA (AC/DC) |
| Operating Temperature | -30°C ~ 85°C |
