Step1: Product

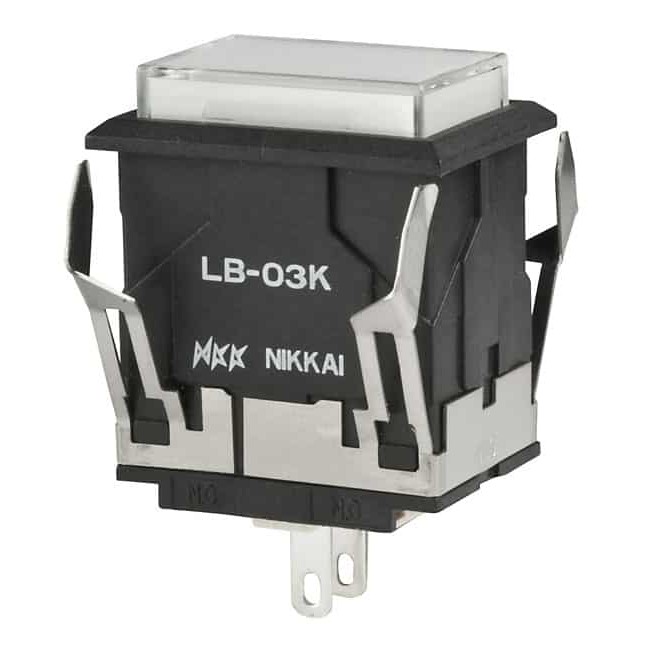

NKK Switches LB03KW01-5F-JB
Images are for reference only
Manufacturer
Manufacturer No
LB03KW01-5F-JB
Packaging
Box
Description
LED PNL IND GREEN CLEAR 19X13
Detailed Description
LED Panel Indicator Green Clear 2.1V 30mA Quick Connect - 0.110" (2.8mm)
Datasheet
Payment
Delivery
Type
LED
Series
LB
Current
30mA
Ratings
Vf (Typ), If (Max)
Voltage
2.1V
Features
-
Lens Size
19.40mm x 13.20mm
Packaging
Box
Lamp Color
Green
Lens Color
White
Lens Style
Rectangle with Flat Top
Manufacturer
NKK Switches
Viewing Angle
-
Lens Transparency
Clear
Termination Style
Quick Connect - 0.110" (2.8mm)
Wavelength - Peak
-
Ingress Protection
-
Panel Cutout Shape
Rectangle
Base Product Number
LB03
Millicandela Rating
-
Panel Cutout Dimensions
0.88" x 0.64" (22.35mm x 16.26mm)
| Attribute | Value |
|---|---|
| Type | LED |
| Series | LB |
| Current | 30mA |
| Ratings | Vf (Typ), If (Max) |
| Voltage | 2.1V |
| Features | - |
| Lens Size | 19.40mm x 13.20mm |
| Packaging | Box |
| Lamp Color | Green |
| Lens Color | White |
| Lens Style | Rectangle with Flat Top |
| Manufacturer | NKK Switches |
| Viewing Angle | - |
| Lens Transparency | Clear |
| Termination Style | Quick Connect - 0.110" (2.8mm) |
| Wavelength - Peak | - |
| Ingress Protection | - |
| Panel Cutout Shape | Rectangle |
| Base Product Number | LB03 |
| Millicandela Rating | - |
| Panel Cutout Dimensions | 0.88" x 0.64" (22.35mm x 16.26mm) |
