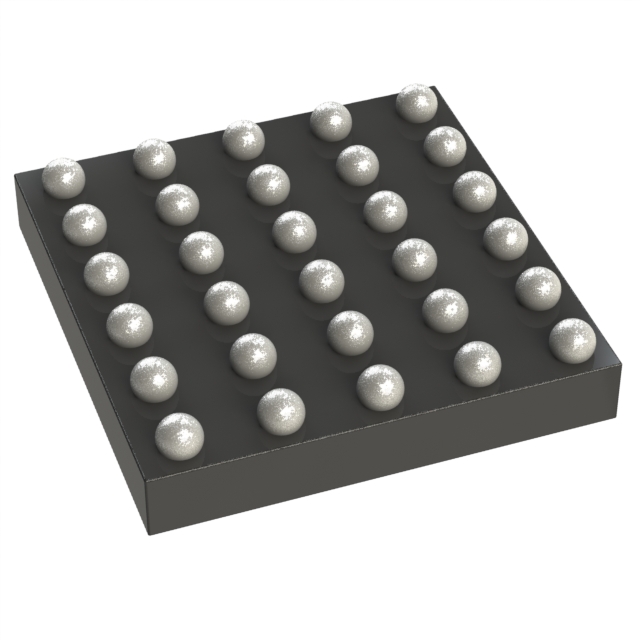

Nisshinbo Micro Devices Inc. ND1130ZAAE1S
Images are for reference only
Manufacturer
Manufacturer No
ND1130ZAAE1S
Package
30-UFBGA, WLCSP
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
DUAL H-BRIDGE DRIVER WITH BOOST
Detailed Description
Half Bridge (4) Driver DC-DC Converters, Piezo Devices Bi-CMOS 30-WLCSP (2.32x2.37)
Datasheet
Payment
Delivery
Grade
-
Series
-
Features
Status Flag
Interface
-
Load Type
Inductive, Capacitive, Resistive
Packaging
Tape & Reel (TR); Cut Tape (CT)
Technology
Bi-CMOS
Applications
DC-DC Converters, Piezo Devices
Manufacturer
Nisshinbo Micro Devices Inc.
Rds On (Typ)
6Ohm LS + HS
Mounting Type
Surface Mount
Qualification
-
Package / Case
30-UFBGA, WLCSP
Voltage - Load
40V (Max)
Fault Protection
Current Limiting, Over Temperature, UVLO
Voltage - Supply
2.7V ~ 5.5V, 7V ~ 35V
Output Configuration
Half Bridge (4)
Current - Peak Output
400mA, 2A
Operating Temperature
-40°C ~ 105°C
Supplier Device Package
30-WLCSP (2.32x2.37)
Current - Output / Channel
400mA, 2A
| Attribute | Value |
|---|---|
| Grade | - |
| Series | - |
| Features | Status Flag |
| Interface | - |
| Load Type | Inductive, Capacitive, Resistive |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Technology | Bi-CMOS |
| Applications | DC-DC Converters, Piezo Devices |
| Manufacturer | Nisshinbo Micro Devices Inc. |
| Rds On (Typ) | 6Ohm LS + HS |
| Mounting Type | Surface Mount |
| Qualification | - |
| Package / Case | 30-UFBGA, WLCSP |
| Voltage - Load | 40V (Max) |
| Fault Protection | Current Limiting, Over Temperature, UVLO |
| Voltage - Supply | 2.7V ~ 5.5V, 7V ~ 35V |
| Output Configuration | Half Bridge (4) |
| Current - Peak Output | 400mA, 2A |
| Operating Temperature | -40°C ~ 105°C |
| Supplier Device Package | 30-WLCSP (2.32x2.37) |
| Current - Output / Channel | 400mA, 2A |
