Step1: Product

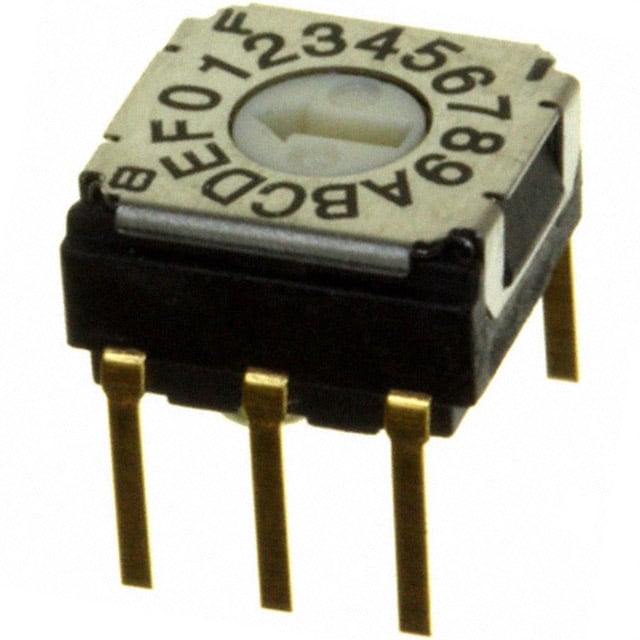

Nidec Components SH-7070MC
Images are for reference only
Manufacturer
Manufacturer No
SH-7070MC
Quantity
161
Availability
In Stock
Packaging
Tube
Description
SW ROTARY DIP HEX COMP 0.1A 5V
Detailed Description
Dip Switch Hexadecimal Complement 16 Position Through Hole Rotary for Tool Actuator 100mA 5VDC
Datasheet
Payment
Delivery
Pitch
0.100" (2.54mm), Full
Length
0.287" (7.30mm)
Series
SH-7000
Circuit
Hexadecimal Complement
Features
-
Washable
Yes
Packaging
Tube
Manufacturer
Nidec Components
Actuator Type
Rotary for Tool
Body Material
Polyphenylene Sulfide (PPS)
Mounting Type
Through Hole
Actuator Level
Flush, Recessed
Contact Finish
Gold
Voltage Rating
5VDC
Electrical Life
10,000 Steps
Mechanical Life
-
Contact Material
Copper Alloy
Termination Style
PC Pin
Height Above Board
0.146" (3.70mm)
Base Product Number
SH-7070
Number of Positions
16
Current Rating (Amps)
100mA
Operating Temperature
-40°C ~ 85°C
| Attribute | Value |
|---|---|
| Pitch | 0.100" (2.54mm), Full |
| Length | 0.287" (7.30mm) |
| Series | SH-7000 |
| Circuit | Hexadecimal Complement |
| Features | - |
| Washable | Yes |
| Packaging | Tube |
| Manufacturer | Nidec Components |
| Actuator Type | Rotary for Tool |
| Body Material | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Actuator Level | Flush, Recessed |
| Contact Finish | Gold |
| Voltage Rating | 5VDC |
| Electrical Life | 10,000 Steps |
| Mechanical Life | - |
| Contact Material | Copper Alloy |
| Termination Style | PC Pin |
| Height Above Board | 0.146" (3.70mm) |
| Base Product Number | SH-7070 |
| Number of Positions | 16 |
| Current Rating (Amps) | 100mA |
| Operating Temperature | -40°C ~ 85°C |
