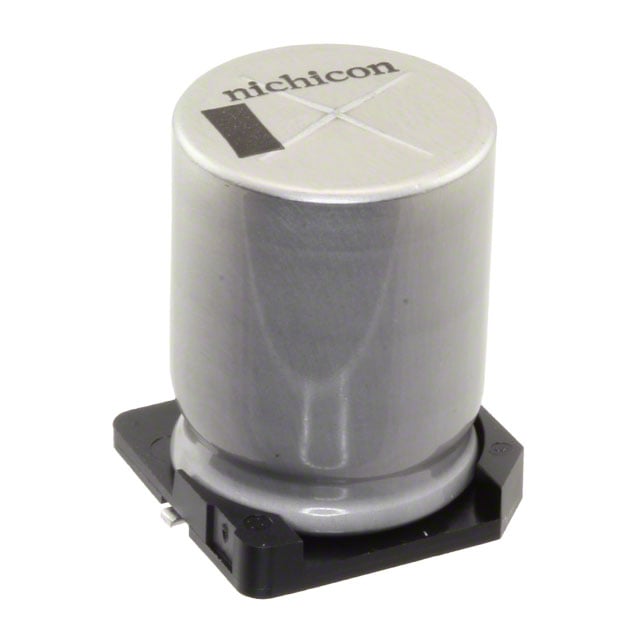

Nichicon UCZ1H681MNJ1MS
Images are for reference only
Manufacturer
Manufacturer No
UCZ1H681MNJ1MS
Package
Radial, Can - SMD
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CAP ALUM 50V POLAR
Detailed Description
680 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 78mOhm @ 100kHz 3500 Hrs @ 125°C
Datasheet
Payment
Delivery
Mfr
Nichicon
Series
UCZ
Ratings
AEC-Q200
Packaging
Tape & Reel (TR); Cut Tape (CT)
Tolerance
±20%
Capacitance
680 µF
Applications
Automotive
Polarization
Polar
Mounting Type
Surface Mount
Package / Case
Radial, Can - SMD
Voltage - Rated
50 V
Lifetime @ Temp.
3500 Hrs @ 125°C
Size / Dimension
0.709" Dia (18.00mm)
Height - Seated (Max)
0.689" (17.50mm)
Operating Temperature
-40°C ~ 125°C
Surface Mount Land Size
0.752" L x 0.752" W (19.10mm x 19.10mm)
Ripple Current @ Low Frequency
1.05 A @ 120 Hz
Ripple Current @ High Frequency
2.1 A @ 100 kHz
ESR (Equivalent Series Resistance)
78mOhm @ 100kHz
| Attribute | Value |
|---|---|
| Mfr | Nichicon |
| Series | UCZ |
| Ratings | AEC-Q200 |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Tolerance | ±20% |
| Capacitance | 680 µF |
| Applications | Automotive |
| Polarization | Polar |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Voltage - Rated | 50 V |
| Lifetime @ Temp. | 3500 Hrs @ 125°C |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Operating Temperature | -40°C ~ 125°C |
| Surface Mount Land Size | 0.752" L x 0.752" W (19.10mm x 19.10mm) |
| Ripple Current @ Low Frequency | 1.05 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.1 A @ 100 kHz |
| ESR (Equivalent Series Resistance) | 78mOhm @ 100kHz |
