Step1: Product

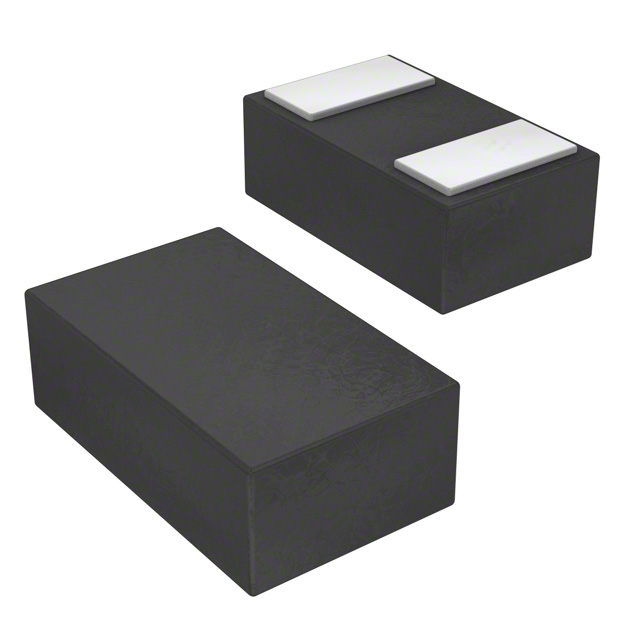

Nexperia USA Inc. PTVS3V3Z1BSCYL
Images are for reference only
Manufacturer
Manufacturer No
PTVS3V3Z1BSCYL
Quantity
159,255
Availability
In Stock
Package
2-XDFN
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
TVS DIODE 3.3VWM 13VC DSN1006-2
Detailed Description
13V Clamp 70A (8/20µs) Ipp Tvs Diode Surface Mount DSN1006-2
Datasheet
Payment
Delivery
Mfr
Nexperia USA Inc.
Type
Zener
Series
-
Packaging
Tape & Reel (TR); Cut Tape (CT)
Applications
Telecom
Mounting Type
Surface Mount
Package / Case
2-XDFN
Power - Peak Pulse
-
Base Product Number
PTVS3V3
Operating Temperature
-55°C ~ 150°C (TA)
Power Line Protection
No
Bidirectional Channels
1
Capacitance @ Frequency
180pF @ 1MHz
Supplier Device Package
DSN1006-2
Voltage - Breakdown (Min)
3.8V
Voltage - Clamping (Max) @ Ipp
13V
Voltage - Reverse Standoff (Typ)
3.3V (Max)
Current - Peak Pulse (10/1000µs)
70A (8/20µs)
| Attribute | Value |
|---|---|
| Mfr | Nexperia USA Inc. |
| Type | Zener |
| Series | - |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Applications | Telecom |
| Mounting Type | Surface Mount |
| Package / Case | 2-XDFN |
| Power - Peak Pulse | - |
| Base Product Number | PTVS3V3 |
| Operating Temperature | -55°C ~ 150°C (TA) |
| Power Line Protection | No |
| Bidirectional Channels | 1 |
| Capacitance @ Frequency | 180pF @ 1MHz |
| Supplier Device Package | DSN1006-2 |
| Voltage - Breakdown (Min) | 3.8V |
| Voltage - Clamping (Max) @ Ipp | 13V |
| Voltage - Reverse Standoff (Typ) | 3.3V (Max) |
| Current - Peak Pulse (10/1000µs) | 70A (8/20µs) |
