Step1: Product

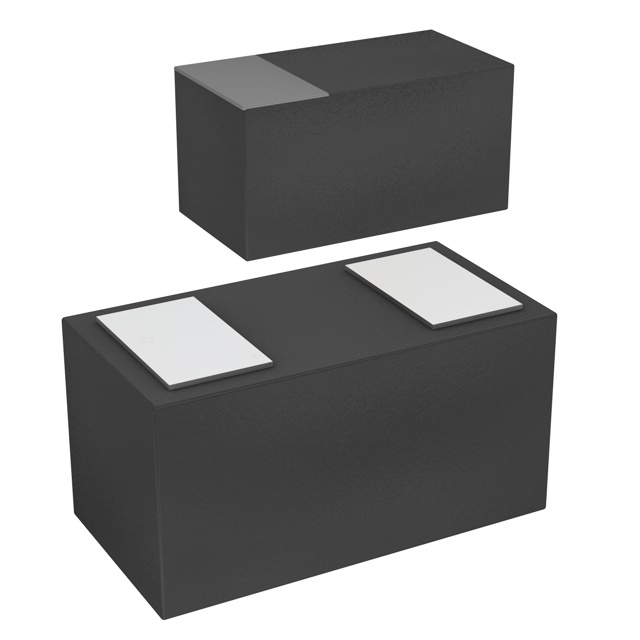

Nexperia USA Inc. PESD3V3Z1BSFYL
Images are for reference only
Manufacturer
Manufacturer No
PESD3V3Z1BSFYL
Quantity
350,700
Availability
In Stock
Package
0201 (0603 Metric)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
TVS DIODE 3.3VWM 5.3VC DSN0603-2
Detailed Description
5.3V Clamp 9.5A (8/20µs) Ipp Tvs Diode Surface Mount DSN0603-2
Datasheet
Payment
Delivery
Mfr
Nexperia USA Inc.
Type
Zener
Series
-
Packaging
Tape & Reel (TR); Cut Tape (CT)
Applications
-
Mounting Type
Surface Mount
Package / Case
0201 (0603 Metric)
Power - Peak Pulse
-
Base Product Number
PESD3
Operating Temperature
-40°C ~ 125°C (TA)
Power Line Protection
No
Bidirectional Channels
1
Capacitance @ Frequency
0.28pF @ 1MHz
Supplier Device Package
DSN0603-2
Voltage - Breakdown (Min)
6.9V (Typ)
Voltage - Clamping (Max) @ Ipp
5.3V
Voltage - Reverse Standoff (Typ)
3.3V (Max)
Current - Peak Pulse (10/1000µs)
9.5A (8/20µs)
| Attribute | Value |
|---|---|
| Mfr | Nexperia USA Inc. |
| Type | Zener |
| Series | - |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Applications | - |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Power - Peak Pulse | - |
| Base Product Number | PESD3 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Power Line Protection | No |
| Bidirectional Channels | 1 |
| Capacitance @ Frequency | 0.28pF @ 1MHz |
| Supplier Device Package | DSN0603-2 |
| Voltage - Breakdown (Min) | 6.9V (Typ) |
| Voltage - Clamping (Max) @ Ipp | 5.3V |
| Voltage - Reverse Standoff (Typ) | 3.3V (Max) |
| Current - Peak Pulse (10/1000µs) | 9.5A (8/20µs) |
