Nexperia USA Inc. NX138BKHH

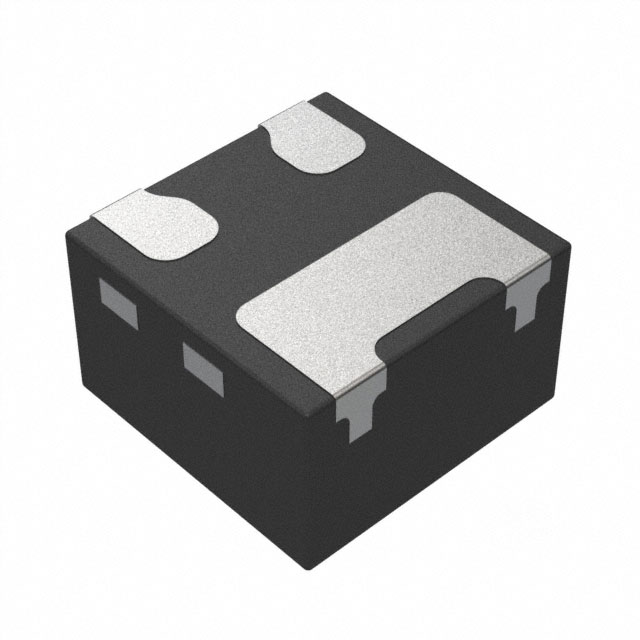

Images are for reference only
Manufacturer
Manufacturer No
NX138BKHH
Availability
In Stock
Package
3-XFDFN
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
MOSFET N-CH 60V 380MA DFN0606-3
Detailed Description
N-Channel 60 V 380mA (Ta) 380mW (Ta), 2.8W (Tc) Surface Mount DFN0606-3
Datasheet
Payment
Delivery
Mfr
Nexperia USA Inc.
Grade
-
Series
TrenchMOS™
FET Type
N-Channel
Packaging
Tape & Reel (TR); Cut Tape (CT)
Vgs (Max)
±20V
Technology
MOSFET (Metal Oxide)
FET Feature
-
Mounting Type
Surface Mount
Qualification
-
Package / Case
3-XFDFN
Vgs(th) (Max) @ Id
1.5V @ 250µA
Base Product Number
NX138
Operating Temperature
-55°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
2.3Ohm @ 380mA, 10V
Power Dissipation (Max)
380mW (Ta), 2.8W (Tc)
Supplier Device Package
DFN0606-3
Gate Charge (Qg) (Max) @ Vgs
0.7 nC @ 10 V
Drain to Source Voltage (Vdss)
60 V
Input Capacitance (Ciss) (Max) @ Vds
20 pF @ 30 V
Current - Continuous Drain (Id) @ 25°C
380mA (Ta)
| Attribute | Value |
|---|---|
| Mfr | Nexperia USA Inc. |
| Grade | - |
| Series | TrenchMOS™ |
| FET Type | N-Channel |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| FET Feature | - |
| Mounting Type | Surface Mount |
| Qualification | - |
| Package / Case | 3-XFDFN |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Base Product Number | NX138 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 2.3Ohm @ 380mA, 10V |
| Power Dissipation (Max) | 380mW (Ta), 2.8W (Tc) |
| Supplier Device Package | DFN0606-3 |
| Gate Charge (Qg) (Max) @ Vgs | 0.7 nC @ 10 V |
| Drain to Source Voltage (Vdss) | 60 V |
| Input Capacitance (Ciss) (Max) @ Vds | 20 pF @ 30 V |
| Current - Continuous Drain (Id) @ 25°C | 380mA (Ta) |
