Step1: Product

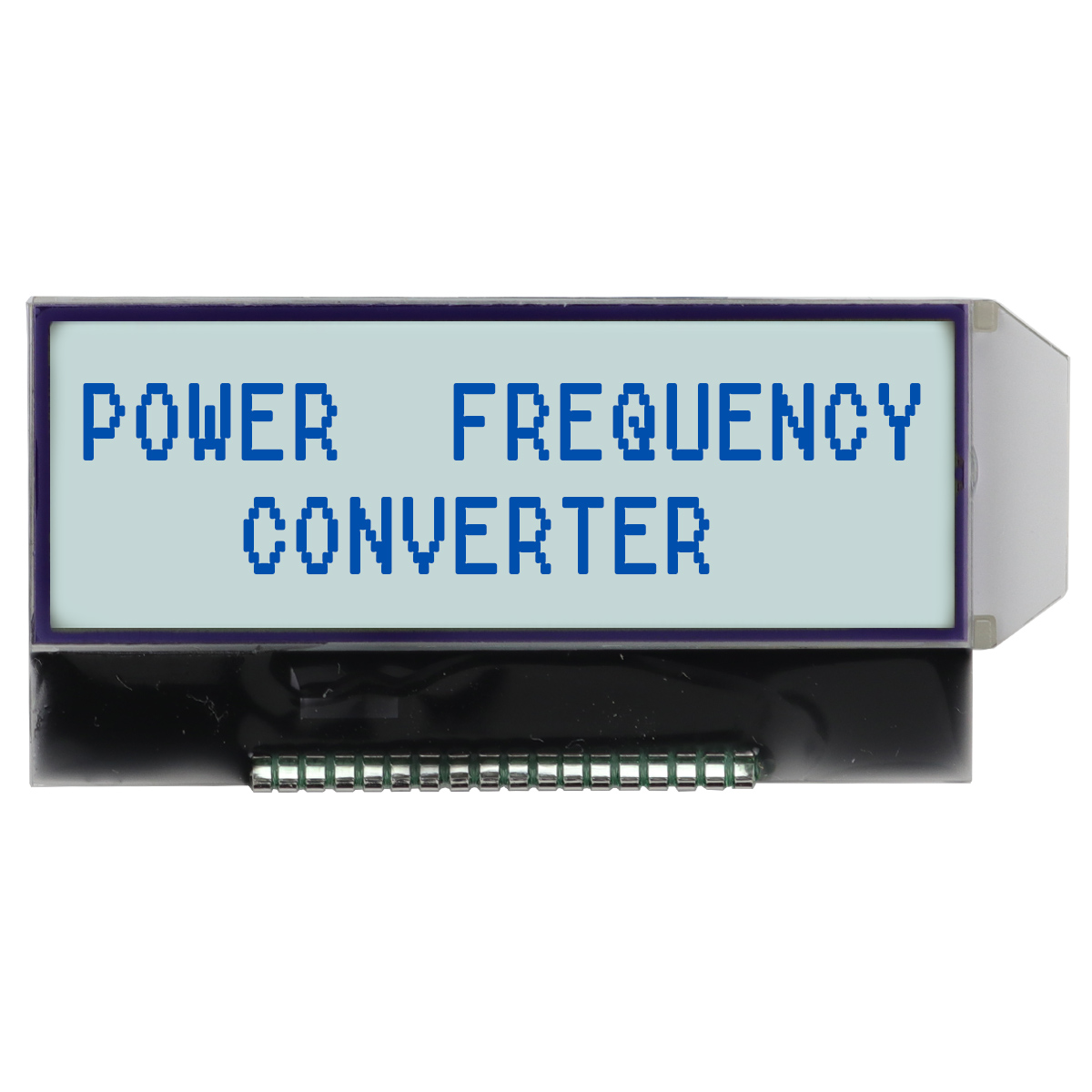

Newhaven Display Intl NHD-C0216BA-FSW-GBW
Images are for reference only
Manufacturer
Manufacturer No
NHD-C0216BA-FSW-GBW
Packaging
Bulk
Description
CHIP ON GLASS- CHARACTER
Detailed Description
Character Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic LED - White 4/8-Bit, Parallel, SPI 54.55mm x 25.30mm x 8.00mm
Datasheet
Payment
Delivery
Series
-
Dot Size
0.41mm W x 0.55mm H
Backlight
LED - White
Interface
4/8-Bit, Parallel, SPI
Packaging
Bulk
Text Color
-
Display Mode
Transflective
Display Type
STN - Super-Twisted Nematic
Manufacturer
Newhaven Display Intl
Viewing Area
45.70mm L x 14.30mm W
Character Size
-
Display Format
16 x 2
Controller Type
ST7032
Background Color
-
Character Format
5 x 8 Dots
Voltage - Supply
4.5V ~ 5.5V
Outline L x W x H
54.55mm x 25.30mm x 8.00mm
Number of Characters
32.0
Operating Temperature
-20°C ~ 70°C
| Attribute | Value |
|---|---|
| Series | - |
| Dot Size | 0.41mm W x 0.55mm H |
| Backlight | LED - White |
| Interface | 4/8-Bit, Parallel, SPI |
| Packaging | Bulk |
| Text Color | - |
| Display Mode | Transflective |
| Display Type | STN - Super-Twisted Nematic |
| Manufacturer | Newhaven Display Intl |
| Viewing Area | 45.70mm L x 14.30mm W |
| Character Size | - |
| Display Format | 16 x 2 |
| Controller Type | ST7032 |
| Background Color | - |
| Character Format | 5 x 8 Dots |
| Voltage - Supply | 4.5V ~ 5.5V |
| Outline L x W x H | 54.55mm x 25.30mm x 8.00mm |
| Number of Characters | 32.0 |
| Operating Temperature | -20°C ~ 70°C |
