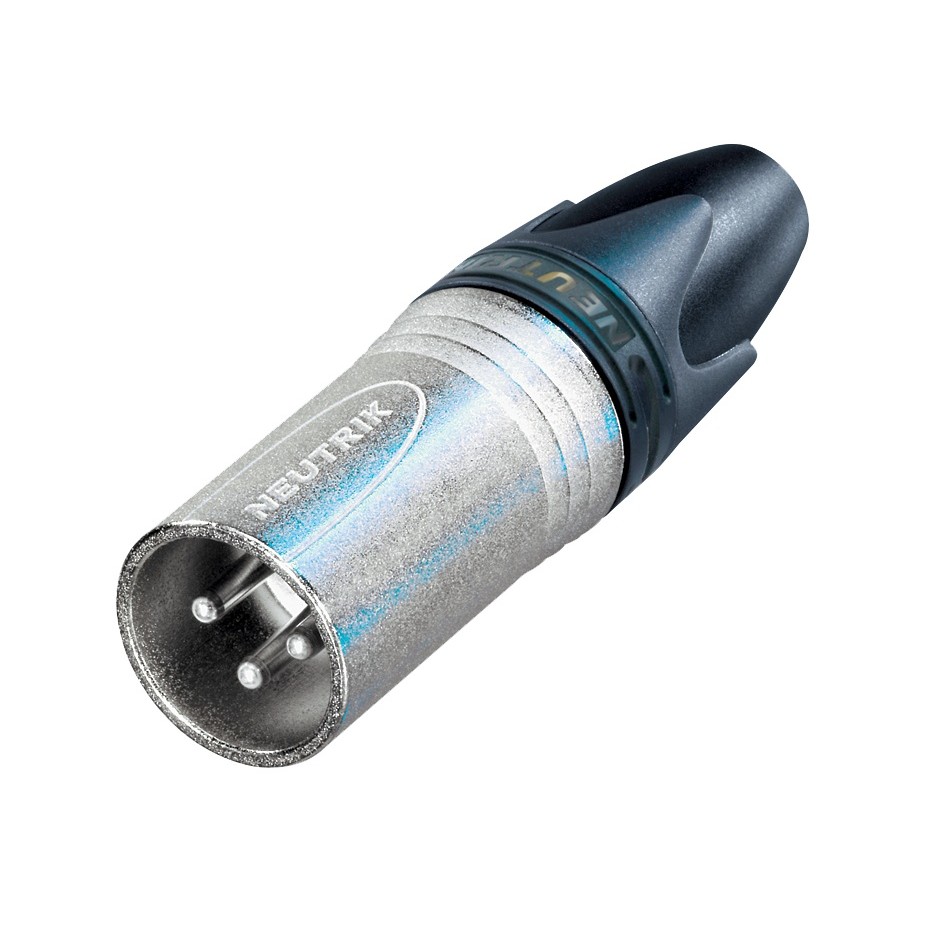

Neutrik Americas, Inc. NC3MXX
Images are for reference only
Manufacturer
Manufacturer No
NC3MXX
Quantity
200
Availability
In Stock
Packaging
Box
Description
CABLE END XX SERIES 3 PIN MALE -
Detailed Description
3 Position Circular Connector Plug, Male Pins Solder Cup
Payment
Delivery
Mfr
Neutrik Americas, Inc.
Color
Silver
Grade
-
Series
-
Features
Backshell, Strain Relief
Packaging
Box
Shielding
Unshielded
Orientation
N (Normal)
Termination
Solder Cup
Applications
Audio
Shell Finish
Nickel
Cable Opening
0.138" ~ 0.315" (3.50mm ~ 8.00mm)
Mounting Type
Free Hanging (In-Line)
Qualification
-
Connector Type
Plug, Male Pins
Fastening Type
Latch Lock
Shell Material
Zinc Die Cast
Voltage Rating
50V
Insert Material
Polyamide (PA66), Nylon 6/6
Shell Size, MIL
-
Contact Material
Bronze
Mounting Feature
-
Primary Material
Metal
Ingress Protection
IP40
Number of Positions
3
Shell Size - Insert
XLR
Current Rating (Amps)
16A
Operating Temperature
-30°C ~ 80°C
Contact Finish - Mating
Silver
Backshell Material, Plating
Zinc Die Cast, Nickel
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
78.7µin (2.00µm)
| Attribute | Value |
|---|---|
| Mfr | Neutrik Americas, Inc. |
| Color | Silver |
| Grade | - |
| Series | - |
| Features | Backshell, Strain Relief |
| Packaging | Box |
| Shielding | Unshielded |
| Orientation | N (Normal) |
| Termination | Solder Cup |
| Applications | Audio |
| Shell Finish | Nickel |
| Cable Opening | 0.138" ~ 0.315" (3.50mm ~ 8.00mm) |
| Mounting Type | Free Hanging (In-Line) |
| Qualification | - |
| Connector Type | Plug, Male Pins |
| Fastening Type | Latch Lock |
| Shell Material | Zinc Die Cast |
| Voltage Rating | 50V |
| Insert Material | Polyamide (PA66), Nylon 6/6 |
| Shell Size, MIL | - |
| Contact Material | Bronze |
| Mounting Feature | - |
| Primary Material | Metal |
| Ingress Protection | IP40 |
| Number of Positions | 3 |
| Shell Size - Insert | XLR |
| Current Rating (Amps) | 16A |
| Operating Temperature | -30°C ~ 80°C |
| Contact Finish - Mating | Silver |
| Backshell Material, Plating | Zinc Die Cast, Nickel |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 78.7µin (2.00µm) |
