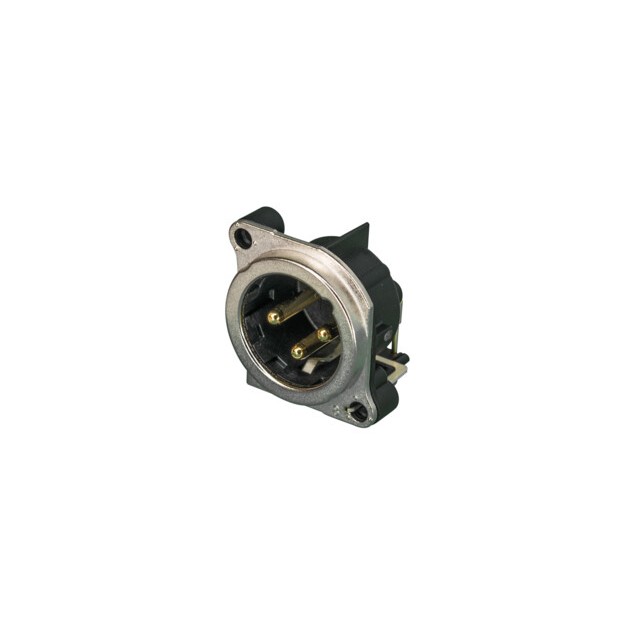

Neutrik Americas, Inc. NC3MBH-1
Images are for reference only
Manufacturer
Manufacturer No
NC3MBH-1
Packaging
Box
Description
RECEPTACLE - B SERIES - XLR 3 PI
Detailed Description
3 Position Circular Connector Receptacle, Male Pins Solder
Datasheet
Payment
Delivery
Mfr
Neutrik Americas, Inc.
Color
Silver
Grade
-
Series
B
Features
Ground
Packaging
Box
Shielding
Unshielded
Orientation
N (Normal)
Termination
Solder
Applications
-
Shell Finish
-
Cable Opening
-
Mounting Type
Panel Mount, Through Hole, Right Angle
Qualification
-
Connector Type
Receptacle, Male Pins
Fastening Type
Latch Lock
Shell Material
Zinc Die Cast
Voltage Rating
50V
Insert Material
Polyamide (PA66), Nylon 6/6, Glass Filled
Shell Size, MIL
-
Contact Material
Brass
Mounting Feature
Flange
Primary Material
Metal
Ingress Protection
-
Number of Positions
3
Shell Size - Insert
XLR
Current Rating (Amps)
6A
Operating Temperature
-30°C ~ 80°C
Contact Finish - Mating
Gold
Backshell Material, Plating
-
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
7.87µin (0.200µm)
| Attribute | Value |
|---|---|
| Mfr | Neutrik Americas, Inc. |
| Color | Silver |
| Grade | - |
| Series | B |
| Features | Ground |
| Packaging | Box |
| Shielding | Unshielded |
| Orientation | N (Normal) |
| Termination | Solder |
| Applications | - |
| Shell Finish | - |
| Cable Opening | - |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Qualification | - |
| Connector Type | Receptacle, Male Pins |
| Fastening Type | Latch Lock |
| Shell Material | Zinc Die Cast |
| Voltage Rating | 50V |
| Insert Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Shell Size, MIL | - |
| Contact Material | Brass |
| Mounting Feature | Flange |
| Primary Material | Metal |
| Ingress Protection | - |
| Number of Positions | 3 |
| Shell Size - Insert | XLR |
| Current Rating (Amps) | 6A |
| Operating Temperature | -30°C ~ 80°C |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 7.87µin (0.200µm) |
