Step1: Product

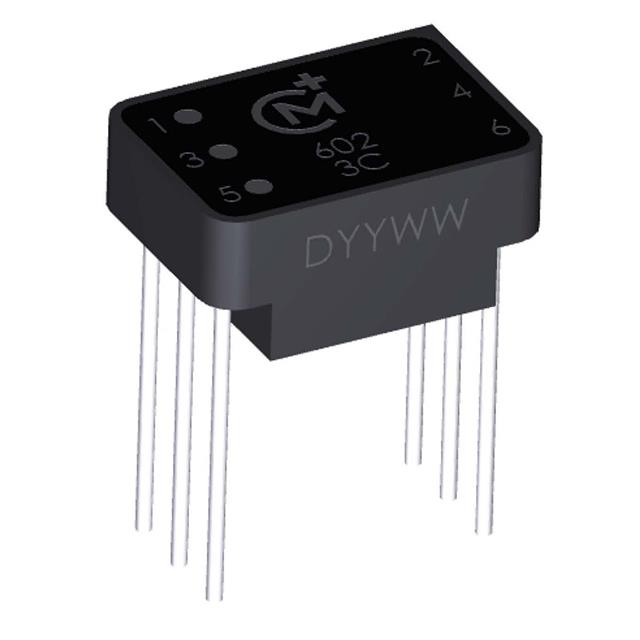

Murata Power Solutions Inc. 76602/1C
Images are for reference only
Manufacturer
Manufacturer No
76602/1C
Quantity
10
Availability
In Stock
Packaging
Tube
Description
XFRMR 1:1:1 2060UH 17.5VUS C
Detailed Description
2.06mH General Purpose Pulse Transformer 1:1:1 Through Hole
Datasheet
Payment
Delivery
Series
766
Weight
-
Packaging
Tube
Inductance
2.06mH
Manufacturer
Murata Power Solutions Inc.
Mounting Type
Through Hole
ET (Volt-Time)
17.5VµS
Size / Dimension
0.500" L x 0.350" W (12.70mm x 8.89mm)
Transformer Type
General Purpose
Base Product Number
76602
Height - Seated (Max)
0.260" (6.60mm)
Operating Temperature
0°C ~ 70°C
Turns Ratio - Primary:Secondary
1:1:1
| Attribute | Value |
|---|---|
| Series | 766 |
| Weight | - |
| Packaging | Tube |
| Inductance | 2.06mH |
| Manufacturer | Murata Power Solutions Inc. |
| Mounting Type | Through Hole |
| ET (Volt-Time) | 17.5VµS |
| Size / Dimension | 0.500" L x 0.350" W (12.70mm x 8.89mm) |
| Transformer Type | General Purpose |
| Base Product Number | 76602 |
| Height - Seated (Max) | 0.260" (6.60mm) |
| Operating Temperature | 0°C ~ 70°C |
| Turns Ratio - Primary:Secondary | 1:1:1 |
