Step1: Product

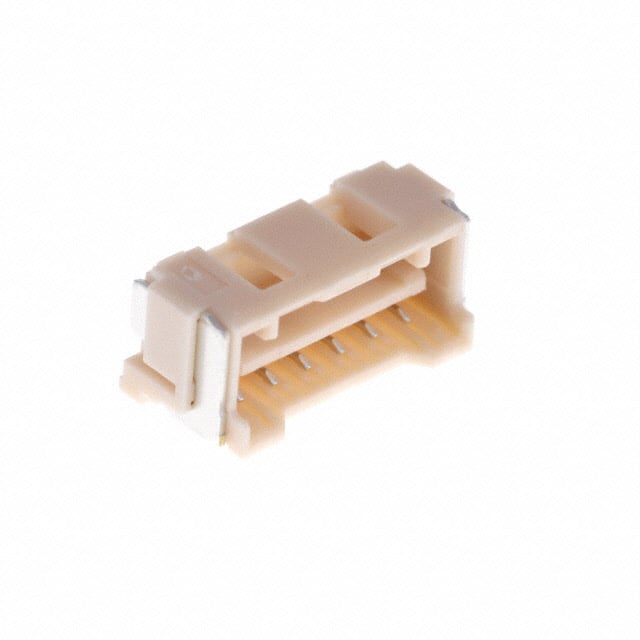

Molex 5024430670

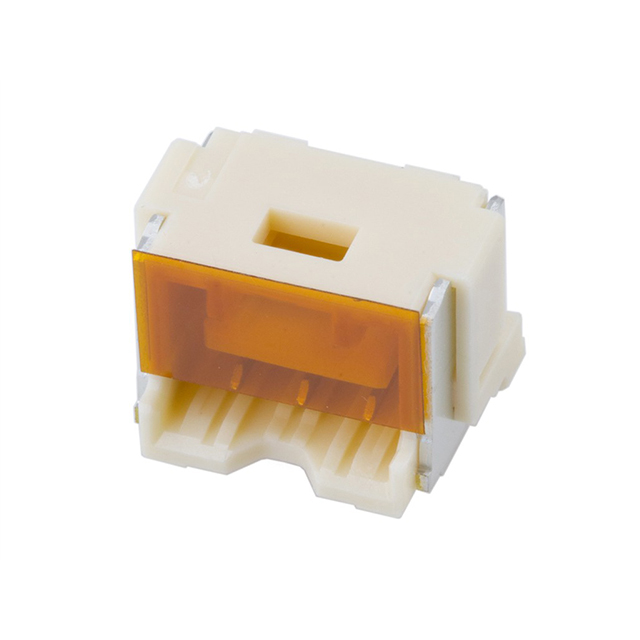

Images are for reference only
Manufacturer
Manufacturer No
5024430670
Quantity
3,032
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN RCPT 6POS 0.079 TIN SMD
Detailed Description
6 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Tin
Datasheet
Payment
Delivery
Mfr
Molex
Style
Board to Cable/Wire
Series
CLIK-Mate 502443
Features
Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT)
Termination
Solder
Applications
Automotive, General Purpose, Industrial, Lighting, Medical
Contact Type
Forked
Contact Shape
-
Mounting Type
Surface Mount
Connector Type
Receptacle
Fastening Type
Latch Holder
Number of Rows
1
Pitch - Mating
0.079" (2.00mm)
Voltage Rating
-
Contact Material
Copper Alloy
Insulation Color
Natural
Insulation Height
0.293" (7.44mm)
Ingress Protection
-
Base Product Number
502443
Insulation Material
Resin
Number of Positions
6
Row Spacing - Mating
-
Contact Finish - Post
Tin
Contact Length - Post
-
Current Rating (Amps)
-
Operating Temperature
-40°C ~ 105°C
Mated Stacking Heights
-
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
39.4µin (1.00µm)
Contact Finish Thickness - Mating
39.4µin (1.00µm)
| Attribute | Value |
|---|---|
| Mfr | Molex |
| Style | Board to Cable/Wire |
| Series | CLIK-Mate 502443 |
| Features | Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Lighting, Medical |
| Contact Type | Forked |
| Contact Shape | - |
| Mounting Type | Surface Mount |
| Connector Type | Receptacle |
| Fastening Type | Latch Holder |
| Number of Rows | 1 |
| Pitch - Mating | 0.079" (2.00mm) |
| Voltage Rating | - |
| Contact Material | Copper Alloy |
| Insulation Color | Natural |
| Insulation Height | 0.293" (7.44mm) |
| Ingress Protection | - |
| Base Product Number | 502443 |
| Insulation Material | Resin |
| Number of Positions | 6 |
| Row Spacing - Mating | - |
| Contact Finish - Post | Tin |
| Contact Length - Post | - |
| Current Rating (Amps) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mated Stacking Heights | - |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 39.4µin (1.00µm) |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
