Step1: Product

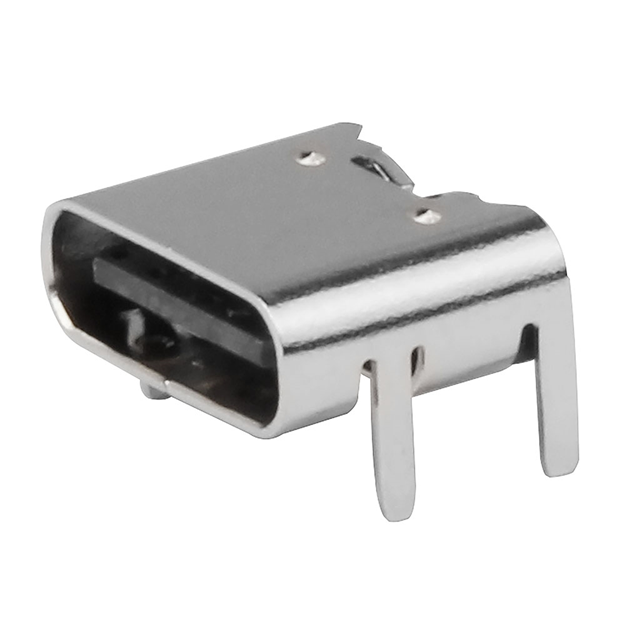

Molex 2171750001
Images are for reference only
Manufacturer
Manufacturer No
2171750001
Quantity
6,902
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN RCP USB2.0 C 6POS SMD RA
Detailed Description
USB-C (USB TYPE-C) USB 2.0 Receptacle Connector 24 (6+18 Dummy) - Power Only 6 Pin Position Surface Mount, Right Angle; Through Hole
Datasheet
Payment
Delivery
Gender
Receptacle
Series
217175
Features
Board Guide; Power Only, No Data
Packaging
Tape & Reel (TR); Cut Tape (CT)
Shielding
Shielded
Termination
Solder
Manufacturer
Molex
Mating Cycles
10000
Mounting Type
Surface Mount, Right Angle; Through Hole
Connector Type
USB-C (USB TYPE-C)
Contact Finish
Gold
Specifications
USB 2.0
Number of Ports
1
Voltage - Rated
30VAC/DC
Insulation Color
-
Mounting Feature
Horizontal
Ingress Protection
-
Number of Contacts
24 (6+18 Dummy) - Power Only 6 Pin
Base Product Number
217175
Current Rating (Amps)
3A
Operating Temperature
-40°C ~ 85°C
Shell/Shielding Material
Steel, Stainless
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Gender | Receptacle |
| Series | 217175 |
| Features | Board Guide; Power Only, No Data |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Shielding | Shielded |
| Termination | Solder |
| Manufacturer | Molex |
| Mating Cycles | 10000 |
| Mounting Type | Surface Mount, Right Angle; Through Hole |
| Connector Type | USB-C (USB TYPE-C) |
| Contact Finish | Gold |
| Specifications | USB 2.0 |
| Number of Ports | 1 |
| Voltage - Rated | 30VAC/DC |
| Insulation Color | - |
| Mounting Feature | Horizontal |
| Ingress Protection | - |
| Number of Contacts | 24 (6+18 Dummy) - Power Only 6 Pin |
| Base Product Number | 217175 |
| Current Rating (Amps) | 3A |
| Operating Temperature | -40°C ~ 85°C |
| Shell/Shielding Material | Steel, Stainless |
| Material Flammability Rating | UL94 V-0 |
