Step1: Product
Molex 1122170047

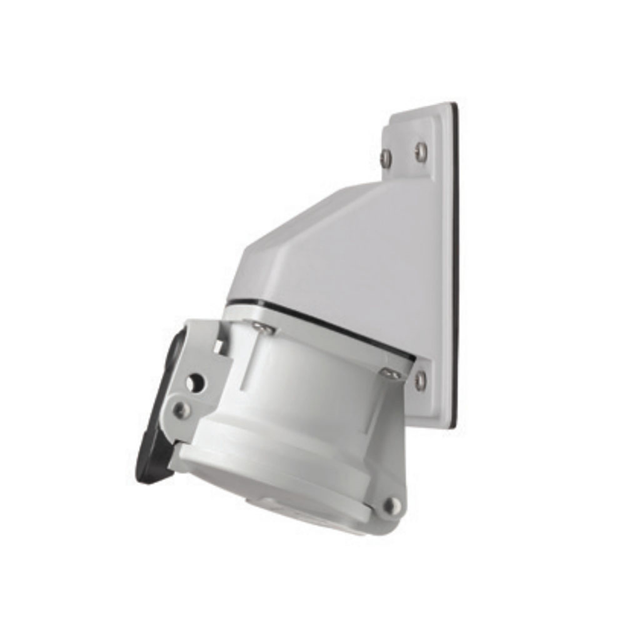

Images are for reference only
Manufacturer
Manufacturer No
1122170047
Availability
In Stock
Packaging
Box
Description
ARC 60A FA 208VAC 2P+G
Detailed Description
3 (2 + PE) Position Circular Connector Receptacle, Female Sockets Screw
Datasheet
Payment
Delivery
Mfr
Molex
Color
Gray
Series
Woodhead ArcArrest 112217
Features
Cap (Cover)
Packaging
Box
Shielding
Unshielded
Orientation
16
Termination
Screw
Applications
Industrial
Shell Finish
-
Cable Opening
-
Mounting Type
Panel Mount, 70° Angle
Connector Type
Receptacle, Female Sockets
Fastening Type
Push-Twist
Shell Material
Polybutylene Terephthalate (PBT), Glass Filled
Voltage Rating
208VAC
Insert Material
Polybutylene Terephthalate (PBT), Glass Filled
Shell Size, MIL
-
Contact Material
Copper Alloy
Mounting Feature
Flange
Primary Material
Plastic
Ingress Protection
IP69K - Dust Tight, High Temp Water Jets, Waterproof
Base Product Number
112217
Number of Positions
3 (2 + PE)
Shell Size - Insert
-
Current Rating (Amps)
60A
Operating Temperature
-40°C ~ 60°C
Contact Finish - Mating
Silver
Backshell Material, Plating
Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating
-
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | Molex |
| Color | Gray |
| Series | Woodhead ArcArrest 112217 |
| Features | Cap (Cover) |
| Packaging | Box |
| Shielding | Unshielded |
| Orientation | 16 |
| Termination | Screw |
| Applications | Industrial |
| Shell Finish | - |
| Cable Opening | - |
| Mounting Type | Panel Mount, 70° Angle |
| Connector Type | Receptacle, Female Sockets |
| Fastening Type | Push-Twist |
| Shell Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Voltage Rating | 208VAC |
| Insert Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Shell Size, MIL | - |
| Contact Material | Copper Alloy |
| Mounting Feature | Flange |
| Primary Material | Plastic |
| Ingress Protection | IP69K - Dust Tight, High Temp Water Jets, Waterproof |
| Base Product Number | 112217 |
| Number of Positions | 3 (2 + PE) |
| Shell Size - Insert | - |
| Current Rating (Amps) | 60A |
| Operating Temperature | -40°C ~ 60°C |
| Contact Finish - Mating | Silver |
| Backshell Material, Plating | Polybutylene Terephthalate (PBT), Glass Filled |
| Material Flammability Rating | - |
| Contact Finish Thickness - Mating | - |
