Step1: Product

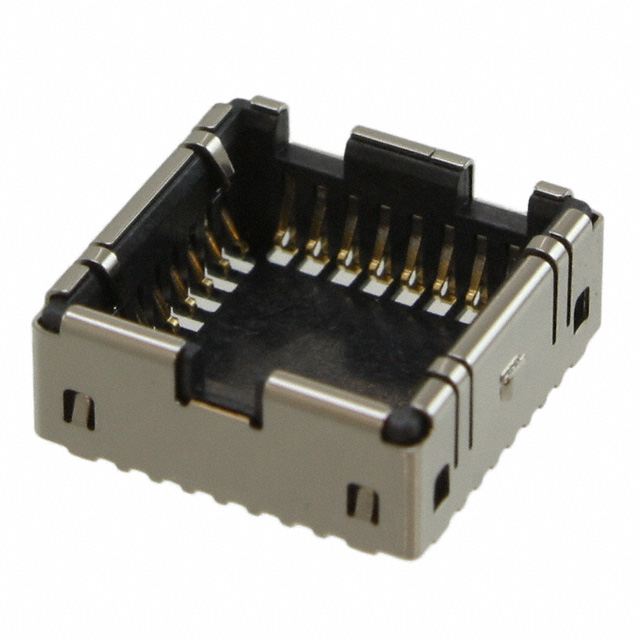

Molex 1050281001
Images are for reference only
Manufacturer
Manufacturer No
1050281001
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN CAM SOCKET 32POS GOLD
Detailed Description
32 (4 x 8) Pos Camera Socket Socket Gold Surface Mount
Datasheet
Payment
Delivery
Type
Camera Socket
Series
105028
Features
Open Frame
Packaging
Tape & Reel (TR); Cut Tape (CT)
Termination
Solder
Manufacturer
Molex
Pitch - Post
0.035" (0.90mm)
Mounting Type
Surface Mount
Pitch - Mating
0.035" (0.90mm)
Housing Material
Thermoplastic
Contact Resistance
-
Base Product Number
105028
Contact Finish - Post
Nickel
Operating Temperature
-
Contact Finish - Mating
Gold
Contact Material - Post
Copper Alloy
Termination Post Length
-
Contact Material - Mating
Copper Alloy
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
50.0µin (1.27µm)
Contact Finish Thickness - Mating
12.0µin (0.30µm)
Number of Positions or Pins (Grid)
32 (4 x 8)
| Attribute | Value |
|---|---|
| Type | Camera Socket |
| Series | 105028 |
| Features | Open Frame |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Termination | Solder |
| Manufacturer | Molex |
| Pitch - Post | 0.035" (0.90mm) |
| Mounting Type | Surface Mount |
| Pitch - Mating | 0.035" (0.90mm) |
| Housing Material | Thermoplastic |
| Contact Resistance | - |
| Base Product Number | 105028 |
| Contact Finish - Post | Nickel |
| Operating Temperature | - |
| Contact Finish - Mating | Gold |
| Contact Material - Post | Copper Alloy |
| Termination Post Length | - |
| Contact Material - Mating | Copper Alloy |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 50.0µin (1.27µm) |
| Contact Finish Thickness - Mating | 12.0µin (0.30µm) |
| Number of Positions or Pins (Grid) | 32 (4 x 8) |
