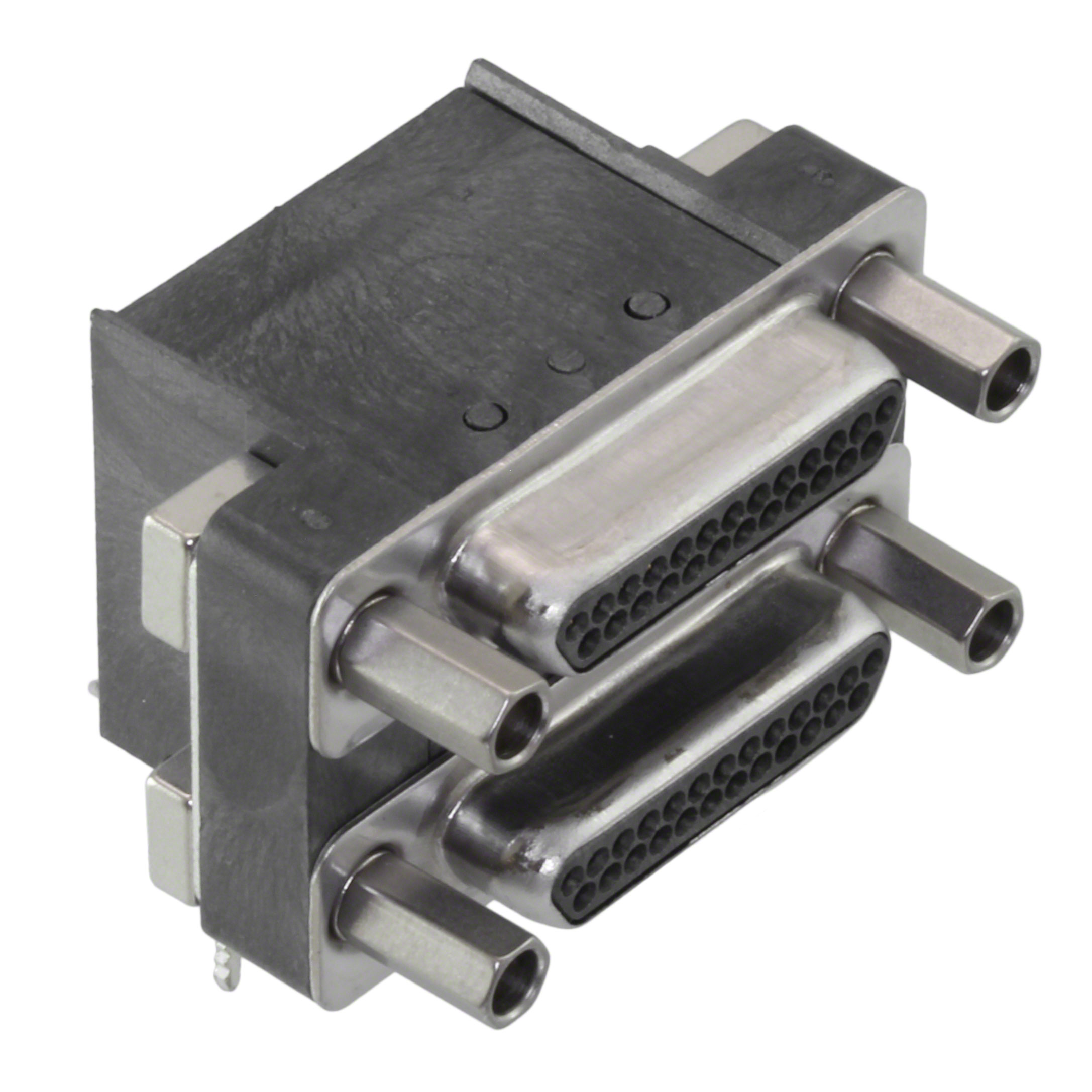

Molex 0836199011
Images are for reference only
Manufacturer
Manufacturer No
0836199011
Quantity
2
Availability
In Stock
Packaging
Tube
Description
CONN MICRO-D PLUG 25POS R/A SLDR
Detailed Description
25, 25 Position D-Type, Micro-D - Stacked Plug, Male Pins Connector
Datasheet
Payment
Delivery
Mfr
Molex
Color
-
Series
Commercial Micro-D Series 83619
Features
Board Lock, Shielded
Packaging
Tube
Wire Gauge
-
Termination
Solder
Contact Form
-
Contact Type
Signal
Mounting Type
Panel Mount, Through Hole, Right Angle
Connector Type
Plug, Male Pins
Contact Finish
Gold
Flange Feature
Mating Side, Female Screwlock (2-56)
Number of Rows
2, 2
Voltage Rating
-
Backset Spacing
0.268" (6.81mm)
Connector Style
D-Type, Micro-D - Stacked
Contact Material
Copper Alloy
Ingress Protection
-
Base Product Number
083619
Dielectric Material
Liquid Crystal Polymer (LCP)
Number of Positions
25, 25
Current Rating (Amps)
1A
Operating Temperature
-40°C ~ 125°C
Shell Material, Finish
Steel, Nickel Plated
Contact Finish Thickness
15.0µin (0.38µm)
Material Flammability Rating
UL94 V-0
Shell Size, Connector Layout
0.050 Pitch x 0.050 Row to Row
| Attribute | Value |
|---|---|
| Mfr | Molex |
| Color | - |
| Series | Commercial Micro-D Series 83619 |
| Features | Board Lock, Shielded |
| Packaging | Tube |
| Wire Gauge | - |
| Termination | Solder |
| Contact Form | - |
| Contact Type | Signal |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Flange Feature | Mating Side, Female Screwlock (2-56) |
| Number of Rows | 2, 2 |
| Voltage Rating | - |
| Backset Spacing | 0.268" (6.81mm) |
| Connector Style | D-Type, Micro-D - Stacked |
| Contact Material | Copper Alloy |
| Ingress Protection | - |
| Base Product Number | 083619 |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Number of Positions | 25, 25 |
| Current Rating (Amps) | 1A |
| Operating Temperature | -40°C ~ 125°C |
| Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish Thickness | 15.0µin (0.38µm) |
| Material Flammability Rating | UL94 V-0 |
| Shell Size, Connector Layout | 0.050 Pitch x 0.050 Row to Row |
