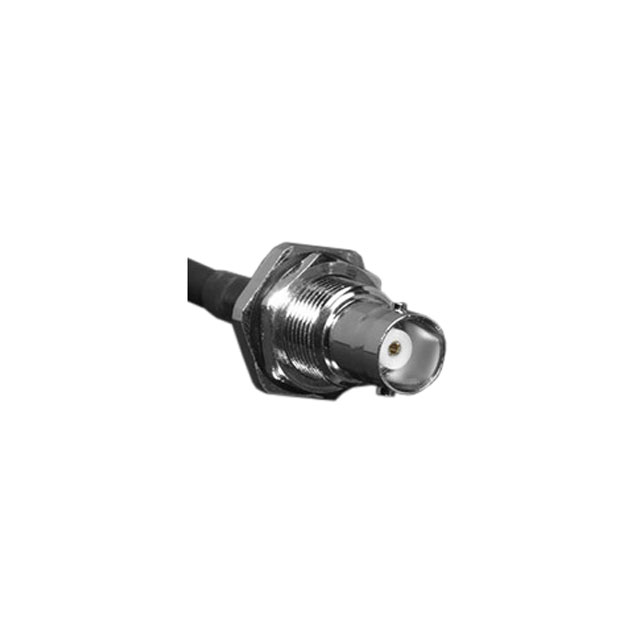

Molex 0731712490
Images are for reference only
Manufacturer
Manufacturer No
0731712490
Packaging
Bulk
Description
BNC JACK BULKHEAD FOR RG174 50 O
Detailed Description
BNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder
Datasheet
Payment
Delivery
Mfr
Molex
Series
73171
Features
-
Includes
-
Impedance
50 Ohms
Packaging
Bulk
Body Finish
Nickel
Cable Group
RG-174
Body Material
Brass
Housing Color
Silver
Mating Cycles
-
Mounting Type
Panel Mount
Connector Type
Jack, Female Socket
Fastening Type
Bayonet Lock
Insertion Loss
-
Voltage Rating
500 V
Connector Style
BNC
Frequency - Max
4 GHz
Number of Ports
1
Mounting Feature
Bulkhead - Front Side Nut
Ingress Protection
-
Shield Termination
Crimp
Base Product Number
073171
Contact Termination
Solder
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
| Attribute | Value |
|---|---|
| Mfr | Molex |
| Series | 73171 |
| Features | - |
| Includes | - |
| Impedance | 50 Ohms |
| Packaging | Bulk |
| Body Finish | Nickel |
| Cable Group | RG-174 |
| Body Material | Brass |
| Housing Color | Silver |
| Mating Cycles | - |
| Mounting Type | Panel Mount |
| Connector Type | Jack, Female Socket |
| Fastening Type | Bayonet Lock |
| Insertion Loss | - |
| Voltage Rating | 500 V |
| Connector Style | BNC |
| Frequency - Max | 4 GHz |
| Number of Ports | 1 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Ingress Protection | - |
| Shield Termination | Crimp |
| Base Product Number | 073171 |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | - |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
