Step1: Product

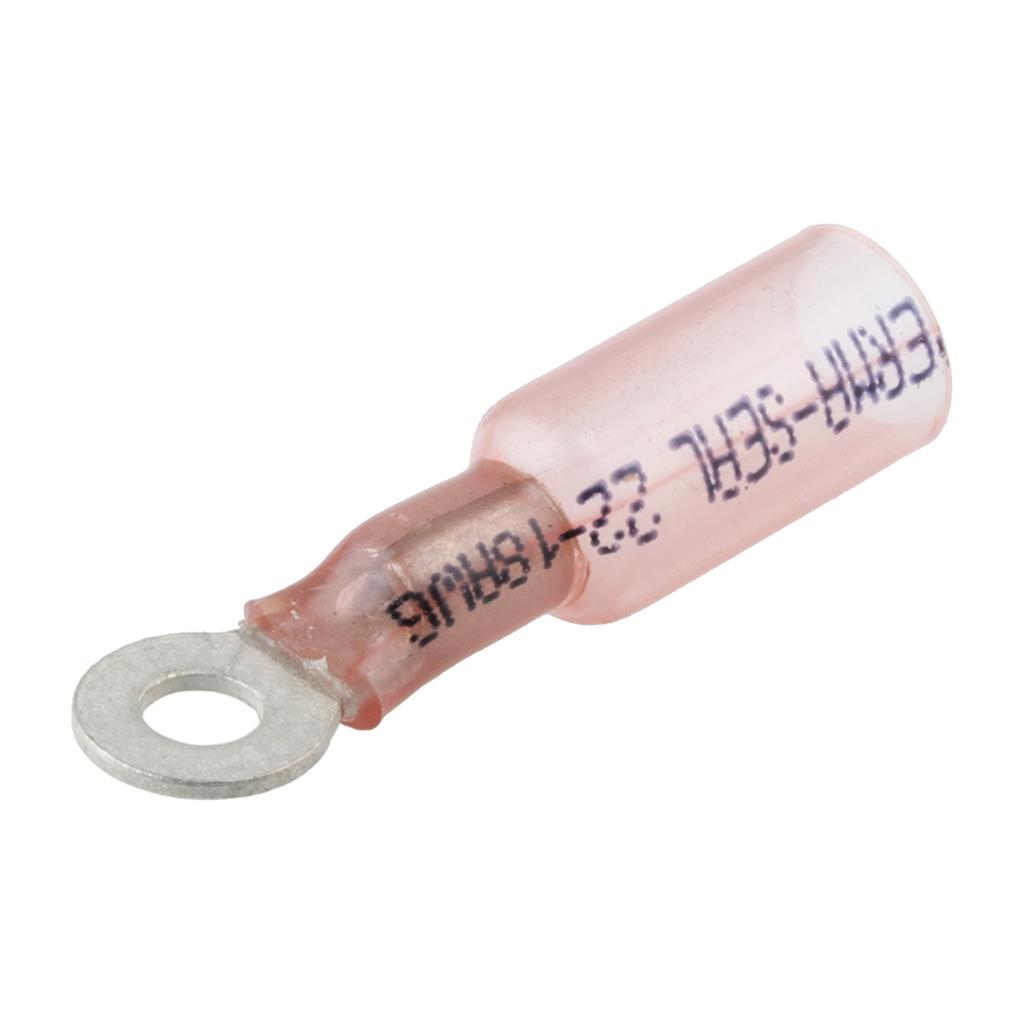

Molex 0191640085
Images are for reference only
Manufacturer
Manufacturer No
0191640085
Quantity
80
Availability
In Stock
Packaging
Bulk
Description
CONN RING CIRC 18-22AWG #6 CRIMP
Detailed Description
Ring Terminal Connector 6 Stud Circular 18-22 AWG Crimp
Datasheet
Payment
Delivery
Color
Red
Series
Perma-Seal
Features
Serrated Termination
Packaging
Bulk
Thickness
0.028" (0.71mm)
Insulation
Insulated with Heat Shrink
Wire Gauge
18-22 AWG
Termination
Crimp
Manufacturer
Molex
Mounting Type
Free Hanging (In-Line)
Stud/Tab Size
6 Stud
Terminal Type
Circular
Contact Finish
Tin
Contact Material
Copper Alloy
Length - Overall
1.460" (37.08mm)
Base Product Number
019164
Insulation Diameter
0.235" (5.97mm)
Width - Outer Edges
0.320" (8.13mm)
Material - Insulation
NiAc
| Attribute | Value |
|---|---|
| Color | Red |
| Series | Perma-Seal |
| Features | Serrated Termination |
| Packaging | Bulk |
| Thickness | 0.028" (0.71mm) |
| Insulation | Insulated with Heat Shrink |
| Wire Gauge | 18-22 AWG |
| Termination | Crimp |
| Manufacturer | Molex |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 6 Stud |
| Terminal Type | Circular |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Length - Overall | 1.460" (37.08mm) |
| Base Product Number | 019164 |
| Insulation Diameter | 0.235" (5.97mm) |
| Width - Outer Edges | 0.320" (8.13mm) |
| Material - Insulation | NiAc |
