Step1: Product
Milspecwest, LLC MSW08E22-55S-SR

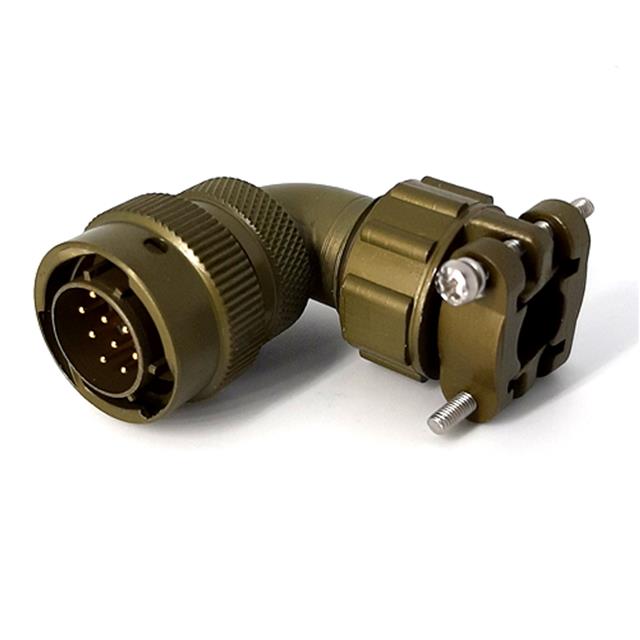

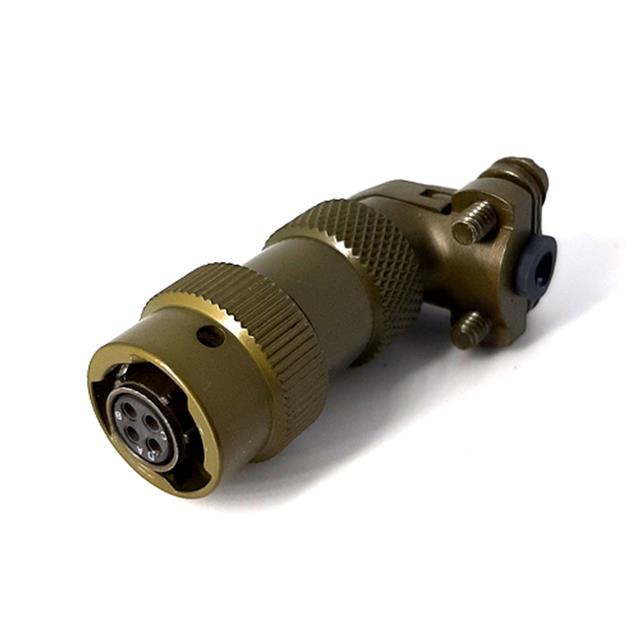

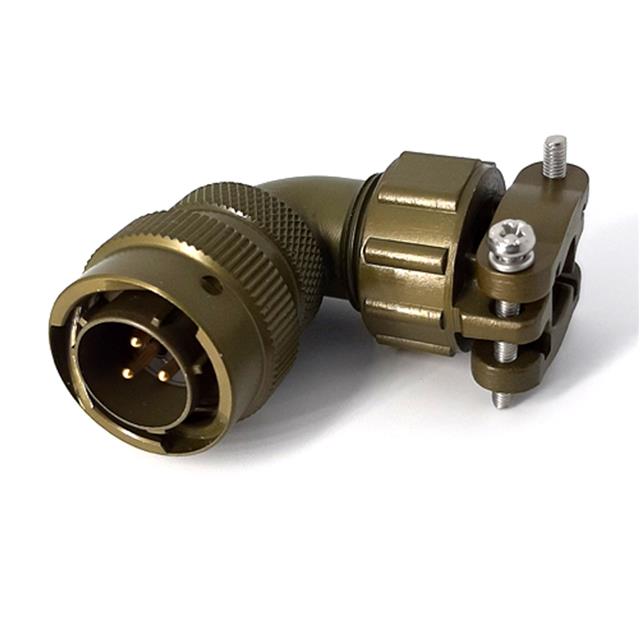

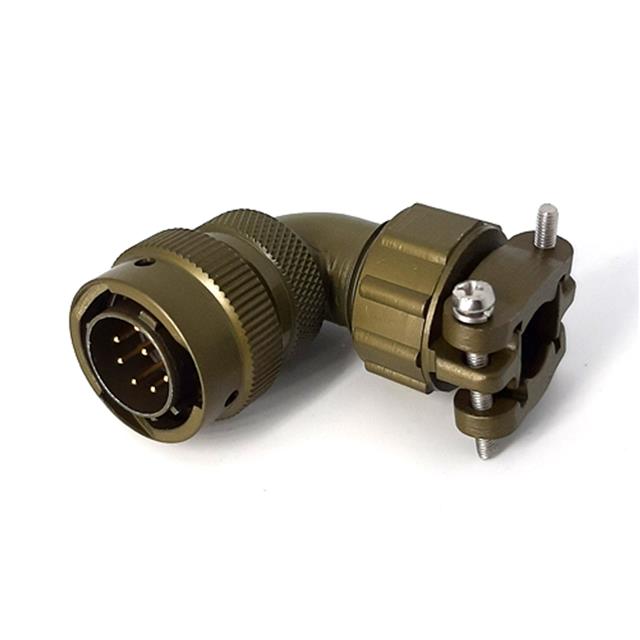

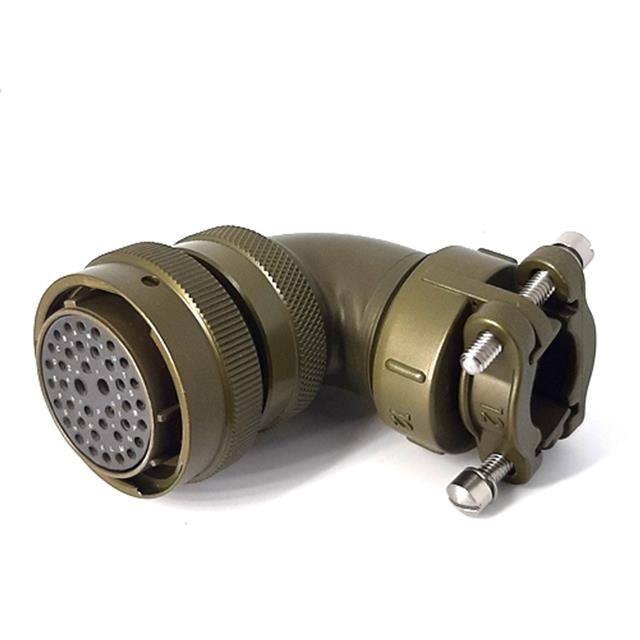

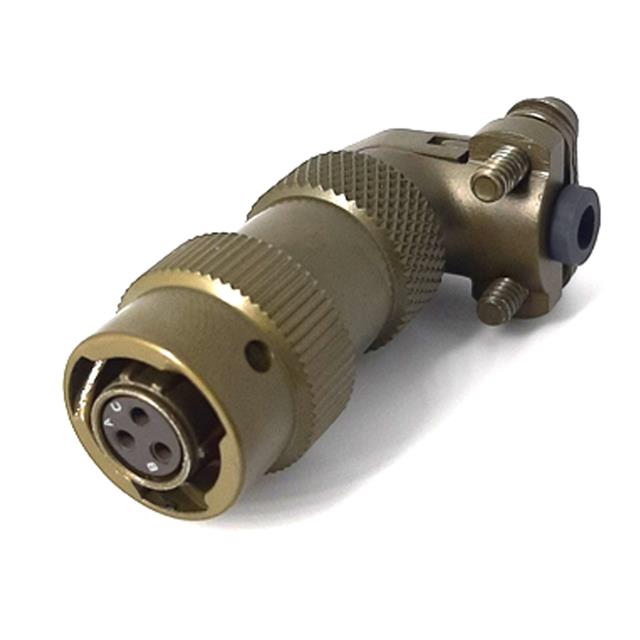

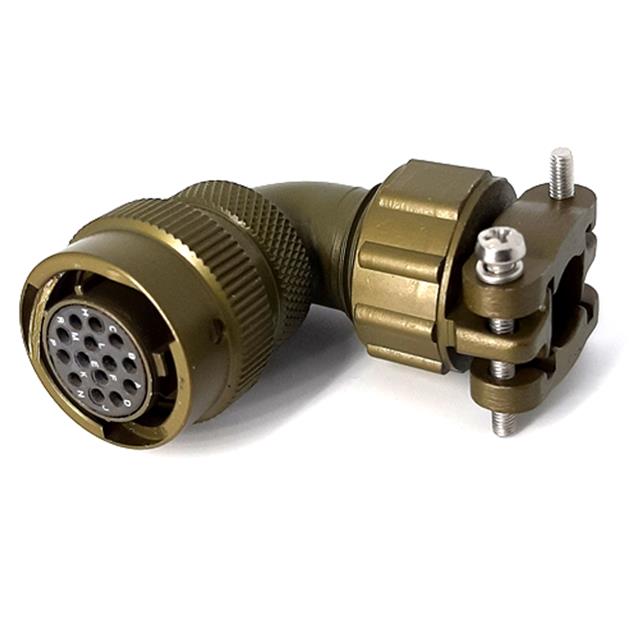

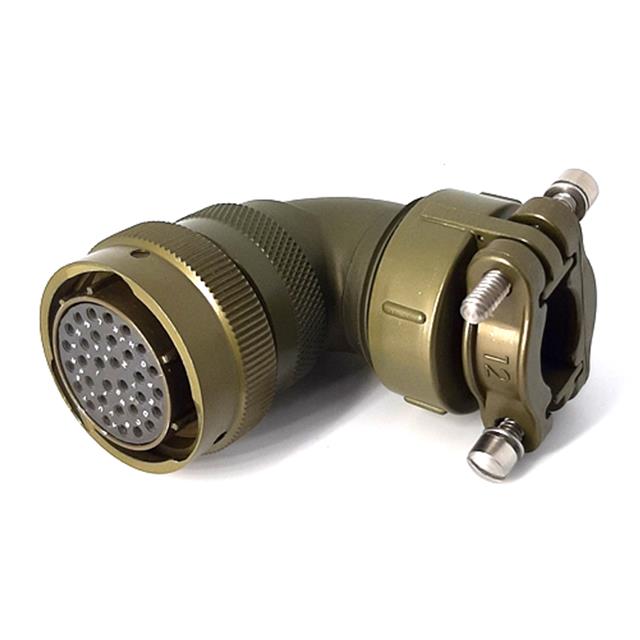

Images are for reference only
Manufacturer
Manufacturer No
MSW08E22-55S-SR
Packaging
Bag
Description
RIGHT ANGLE CABLE PLUG, WITH STR
Detailed Description
55 Position Circular Connector Plug, Female Sockets Solder
Datasheet
Payment
Delivery
Mfr
Milspecwest, LLC
Color
-
Series
26482 Style Connectors
Features
Strain Relief
Packaging
Bag
Shielding
-
Termination
Solder
Applications
Military
Shell Finish
Cadmium
Cable Opening
-
Mounting Type
Free Hanging (In-Line), Right Angle
Connector Type
Plug, Female Sockets
Fastening Type
Bayonet Lock
Shell Material
Aluminum
Voltage Rating
800V
Mounting Feature
-
Ingress Protection
Environment Resistant
Number of Positions
55
Shell Size - Insert
22-55
Current Rating (Amps)
7.5A
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Cadmium
Material Flammability Rating
-
| Attribute | Value |
|---|---|
| Mfr | Milspecwest, LLC |
| Color | - |
| Series | 26482 Style Connectors |
| Features | Strain Relief |
| Packaging | Bag |
| Shielding | - |
| Termination | Solder |
| Applications | Military |
| Shell Finish | Cadmium |
| Cable Opening | - |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Connector Type | Plug, Female Sockets |
| Fastening Type | Bayonet Lock |
| Shell Material | Aluminum |
| Voltage Rating | 800V |
| Mounting Feature | - |
| Ingress Protection | Environment Resistant |
| Number of Positions | 55 |
| Shell Size - Insert | 22-55 |
| Current Rating (Amps) | 7.5A |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Cadmium |
| Material Flammability Rating | - |
