Step1: Product
Mill-Max Manufacturing Corp. 7945-2-15-20-09-14-11-0

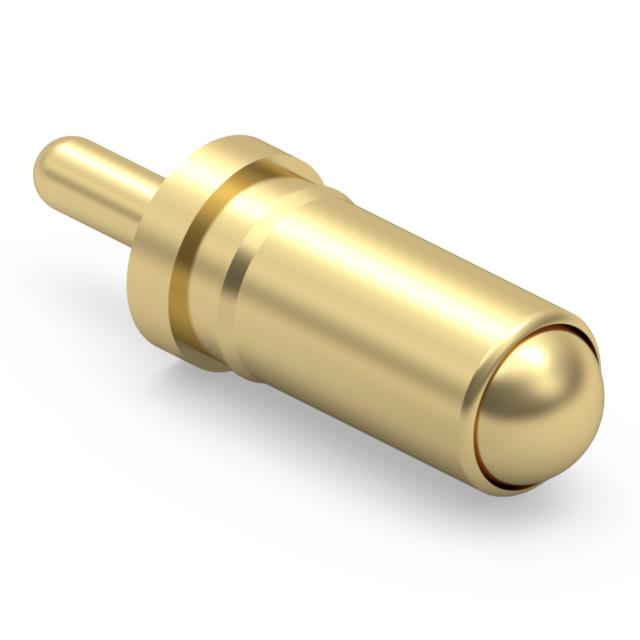

Images are for reference only
Manufacturer
Manufacturer No
7945-2-15-20-09-14-11-0
Availability
In Stock
Packaging
Bulk
Description
SPRING LOADED PIN WITH SOLDERTAI
Detailed Description
Contact Spring Through Hole
Datasheet
Payment
Delivery
Series
7945
Features
-
Packaging
Bulk
Contact Type
Sleeve & Plunger (Pogo Pins)
Manufacturer
Mill-Max Manufacturing Corp.
Plunger Size
0.091" (2.31mm) Dia
Mating Cycles
1000000
Mounting Type
Through Hole
Contact Finish
Gold
Contact Material
Brass Alloy
Base Product Number
7945-2
Pad Layout Dimension
Circular - 0.118" (3mm) (TH)
Current Rating (Amps)
5.2A
Operating Temperature
-55°C ~ 125°C
Maximum Working Height
0.266" (6.76mm)
Minimum Working Height
0.236" (6.00mm)
Contact Finish Thickness
20.0µin (0.51µm)
Operating Force - Initial
30gf
Recommended Working Height
0.251" (6.38mm)
Material Flammability Rating
-
Operating Force - Mid Compression
55gf
| Attribute | Value |
|---|---|
| Series | 7945 |
| Features | - |
| Packaging | Bulk |
| Contact Type | Sleeve & Plunger (Pogo Pins) |
| Manufacturer | Mill-Max Manufacturing Corp. |
| Plunger Size | 0.091" (2.31mm) Dia |
| Mating Cycles | 1000000 |
| Mounting Type | Through Hole |
| Contact Finish | Gold |
| Contact Material | Brass Alloy |
| Base Product Number | 7945-2 |
| Pad Layout Dimension | Circular - 0.118" (3mm) (TH) |
| Current Rating (Amps) | 5.2A |
| Operating Temperature | -55°C ~ 125°C |
| Maximum Working Height | 0.266" (6.76mm) |
| Minimum Working Height | 0.236" (6.00mm) |
| Contact Finish Thickness | 20.0µin (0.51µm) |
| Operating Force - Initial | 30gf |
| Recommended Working Height | 0.251" (6.38mm) |
| Material Flammability Rating | - |
| Operating Force - Mid Compression | 55gf |
