Microchip Technology JANTX2N5796U

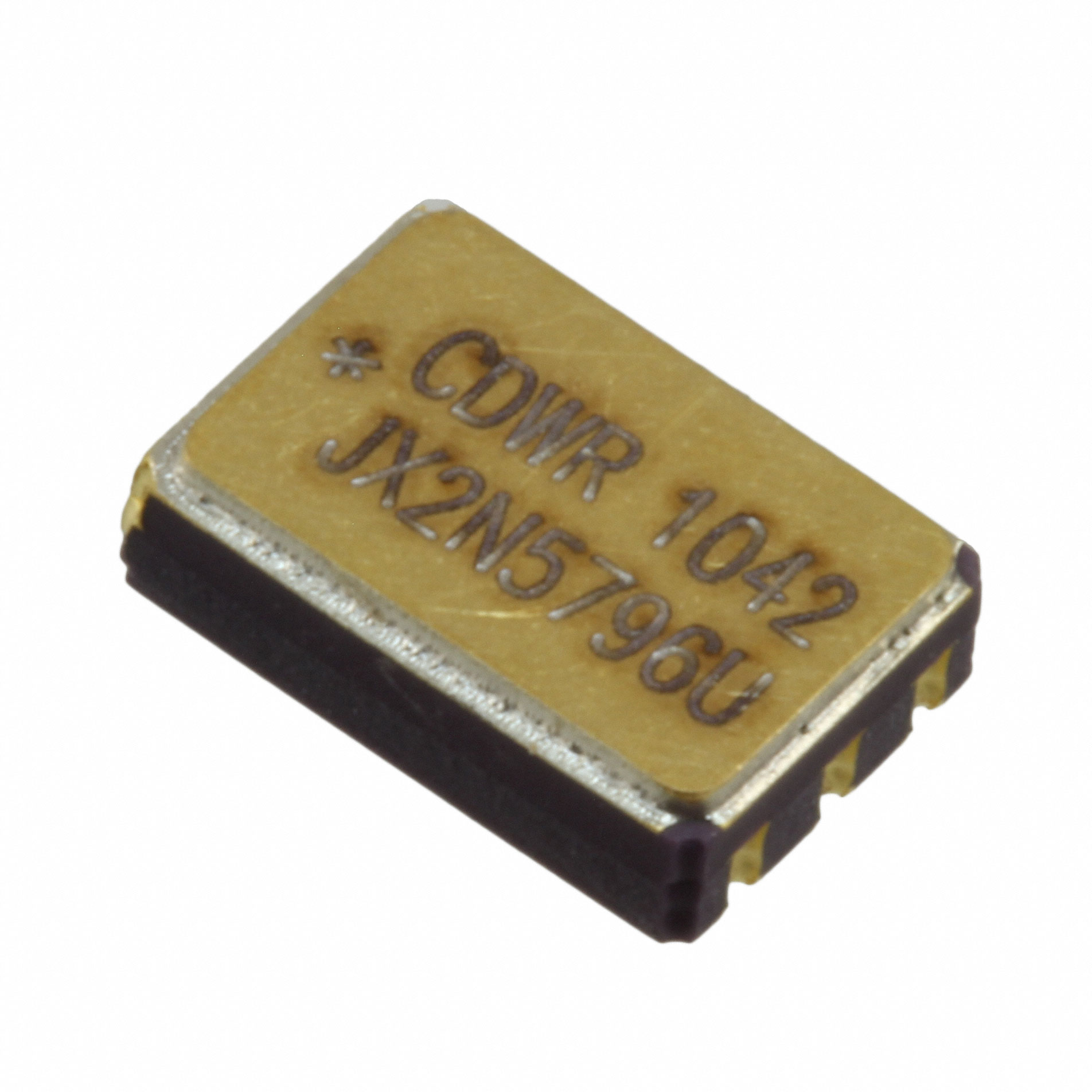

Images are for reference only
Manufacturer
Manufacturer No
JANTX2N5796U
Package
6-SMD, No Lead
Packaging
Bulk
Description
TRANS 2PNP DUAL 60V 600MA 6-SMD
Detailed Description
Bipolar (BJT) Transistor Array 2 PNP (Dual) 60V 600mA 600mW Surface Mount 6-SMD
Datasheet
Payment
Delivery
Grade
Military
Series
-
Packaging
Bulk
Power - Max
600mW
Manufacturer
Microchip Technology
Mounting Type
Surface Mount
Qualification
MIL-PRF-19500/496
Package / Case
6-SMD, No Lead
Transistor Type
2 PNP (Dual)
Base Product Number
2N5796
Operating Temperature
-65°C ~ 175°C (TJ)
Frequency - Transition
-
Supplier Device Package
6-SMD
Vce Saturation (Max) @ Ib, Ic
1.6V @ 50mA, 500mA
Current - Collector (Ic) (Max)
600mA
Current - Collector Cutoff (Max)
10nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce
100 @ 150mA, 10V
Voltage - Collector Emitter Breakdown (Max)
60V
| Attribute | Value |
|---|---|
| Grade | Military |
| Series | - |
| Packaging | Bulk |
| Power - Max | 600mW |
| Manufacturer | Microchip Technology |
| Mounting Type | Surface Mount |
| Qualification | MIL-PRF-19500/496 |
| Package / Case | 6-SMD, No Lead |
| Transistor Type | 2 PNP (Dual) |
| Base Product Number | 2N5796 |
| Operating Temperature | -65°C ~ 175°C (TJ) |
| Frequency - Transition | - |
| Supplier Device Package | 6-SMD |
| Vce Saturation (Max) @ Ib, Ic | 1.6V @ 50mA, 500mA |
| Current - Collector (Ic) (Max) | 600mA |
| Current - Collector Cutoff (Max) | 10nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 150mA, 10V |
| Voltage - Collector Emitter Breakdown (Max) | 60V |
