Step1: Product
Microchip Technology DSC8121AI5

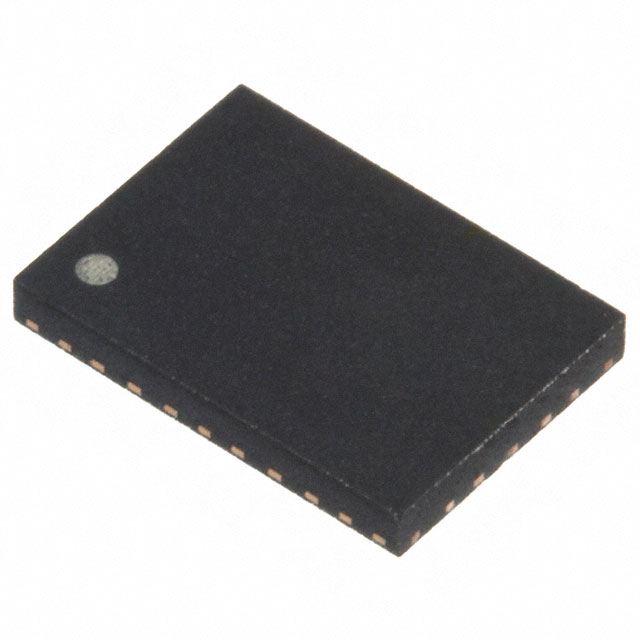

Images are for reference only
Manufacturer
Manufacturer No
DSC8121AI5
Availability
In Stock
Package
6-SMD, No Lead Exposed Pad
Packaging
Tube
Description
MEMS OSC PROG BLANK 10MHZ-100MHZ
Detailed Description
XO (Standard) CMOS 10 MHz ~ 100 MHz Programmable Oscillator 2.25V ~ 3.6V Enable/Disable 6-SMD, No Lead Exposed Pad
Datasheet
Payment
Delivery
Type
XO (Standard)
Output
CMOS
Series
DSC8121
Ratings
-
Function
Enable/Disable
Packaging
Tube
Manufacturer
Microchip Technology
Mounting Type
Surface Mount
Base Resonator
MEMS
Package / Case
6-SMD, No Lead Exposed Pad
Size / Dimension
0.276" L x 0.197" W (7.00mm x 5.00mm)
Voltage - Supply
2.25V ~ 3.6V
Programmable Type
Blank (User Must Program)
Base Product Number
DSC8121
Frequency Stability
±10ppm
Height - Seated (Max)
0.014" (0.35mm)
Operating Temperature
-40°C ~ 85°C
Current - Supply (Max)
35mA
Available Frequency Range
10 MHz ~ 100 MHz
Spread Spectrum Bandwidth
-
Frequency Stability (Total)
-
Current - Supply (Disable) (Max)
22 mA
| Attribute | Value |
|---|---|
| Type | XO (Standard) |
| Output | CMOS |
| Series | DSC8121 |
| Ratings | - |
| Function | Enable/Disable |
| Packaging | Tube |
| Manufacturer | Microchip Technology |
| Mounting Type | Surface Mount |
| Base Resonator | MEMS |
| Package / Case | 6-SMD, No Lead Exposed Pad |
| Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| Voltage - Supply | 2.25V ~ 3.6V |
| Programmable Type | Blank (User Must Program) |
| Base Product Number | DSC8121 |
| Frequency Stability | ±10ppm |
| Height - Seated (Max) | 0.014" (0.35mm) |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply (Max) | 35mA |
| Available Frequency Range | 10 MHz ~ 100 MHz |
| Spread Spectrum Bandwidth | - |
| Frequency Stability (Total) | - |
| Current - Supply (Disable) (Max) | 22 mA |
