Step1: Product

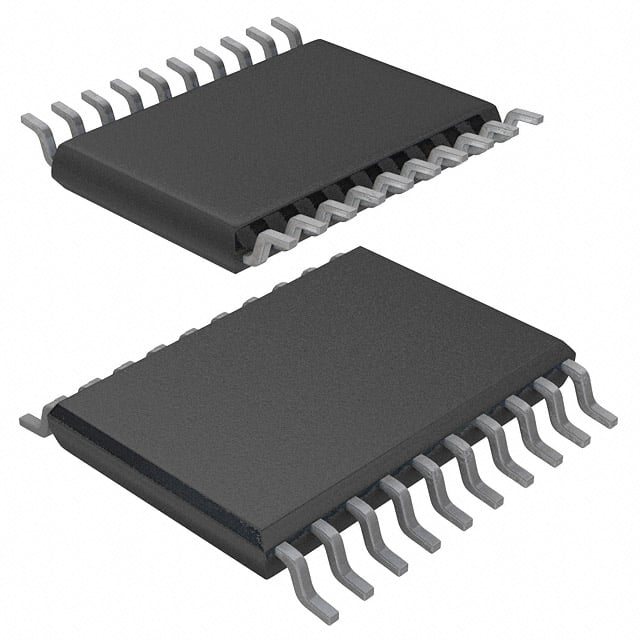

Microchip Technology AT86RF401E-6GS
Images are for reference only
Manufacturer
Manufacturer No
AT86RF401E-6GS
Package
20-TSSOP (0.173", 4.40mm Width)
Packaging
Tube
Description
RF TX IC ASK 264-456MHZ 20TSSOP
Detailed Description
RF Transmitter ASK, OOK 264MHz ~ 456MHz 6dBm 10kbps PCB, Surface Mount Antenna 20-TSSOP (0.173", 4.40mm Width)
Datasheet
Payment
Delivery
Series
-
Features
-
Frequency
264MHz ~ 456MHz
Packaging
Tube
Memory Size
4KB ROM, 1KB RAM, 1KB EEPROM
Applications
Garage Opener, RKE, Telemetry
Manufacturer
Microchip Technology
Mounting Type
Surface Mount
Data Interface
PCB, Surface Mount
Package / Case
20-TSSOP (0.173", 4.40mm Width)
Power - Output
6dBm
Data Rate (Max)
10kbps
Voltage - Supply
2V ~ 5V
Antenna Connector
PCB, Surface Mount
DigiKey Programmable
Not Verified
Operating Temperature
-40°C ~ 85°C
Current - Transmitting
23.2mA
Modulation or Protocol
ASK, OOK
Supplier Device Package
20-TSSOP
| Attribute | Value |
|---|---|
| Series | - |
| Features | - |
| Frequency | 264MHz ~ 456MHz |
| Packaging | Tube |
| Memory Size | 4KB ROM, 1KB RAM, 1KB EEPROM |
| Applications | Garage Opener, RKE, Telemetry |
| Manufacturer | Microchip Technology |
| Mounting Type | Surface Mount |
| Data Interface | PCB, Surface Mount |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| Power - Output | 6dBm |
| Data Rate (Max) | 10kbps |
| Voltage - Supply | 2V ~ 5V |
| Antenna Connector | PCB, Surface Mount |
| DigiKey Programmable | Not Verified |
| Operating Temperature | -40°C ~ 85°C |
| Current - Transmitting | 23.2mA |
| Modulation or Protocol | ASK, OOK |
| Supplier Device Package | 20-TSSOP |
