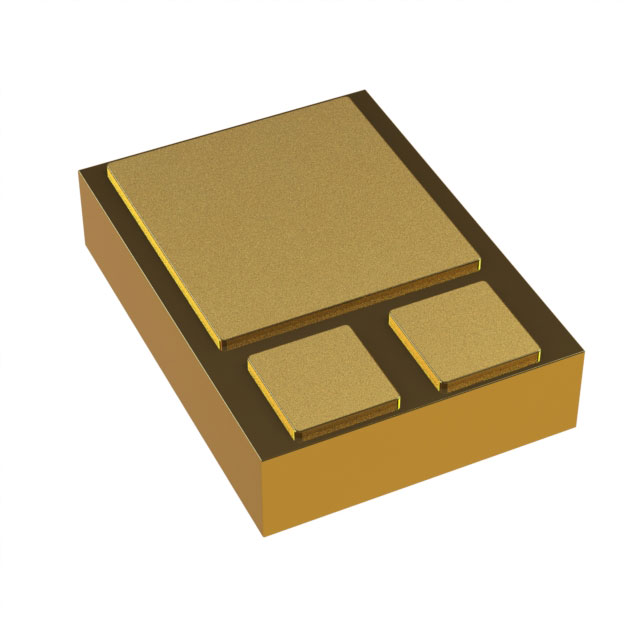

Microchip Technology 2N3506U4
Images are for reference only
Manufacturer
Manufacturer No
2N3506U4
Availability
In Stock
Package
3-SMD, No Lead
Packaging
Bulk
Description
TRANS NPN 40V 3A U4
Detailed Description
Bipolar (BJT) Transistor NPN 40 V 3 A 1 W Surface Mount U4
Datasheet
Payment
Delivery
Mfr
Microchip Technology
Series
-
Packaging
Bulk
Power - Max
1 W
Mounting Type
Surface Mount
Package / Case
3-SMD, No Lead
Transistor Type
NPN
Operating Temperature
-65°C ~ 200°C (TJ)
Frequency - Transition
-
Supplier Device Package
U4
Vce Saturation (Max) @ Ib, Ic
1.5V @ 250mA, 2.5A
Current - Collector (Ic) (Max)
3 A
Current - Collector Cutoff (Max)
1µA
DC Current Gain (hFE) (Min) @ Ic, Vce
50 @ 500mA, 1V
Voltage - Collector Emitter Breakdown (Max)
40 V
| Attribute | Value |
|---|---|
| Mfr | Microchip Technology |
| Series | - |
| Packaging | Bulk |
| Power - Max | 1 W |
| Mounting Type | Surface Mount |
| Package / Case | 3-SMD, No Lead |
| Transistor Type | NPN |
| Operating Temperature | -65°C ~ 200°C (TJ) |
| Frequency - Transition | - |
| Supplier Device Package | U4 |
| Vce Saturation (Max) @ Ib, Ic | 1.5V @ 250mA, 2.5A |
| Current - Collector (Ic) (Max) | 3 A |
| Current - Collector Cutoff (Max) | 1µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 50 @ 500mA, 1V |
| Voltage - Collector Emitter Breakdown (Max) | 40 V |
