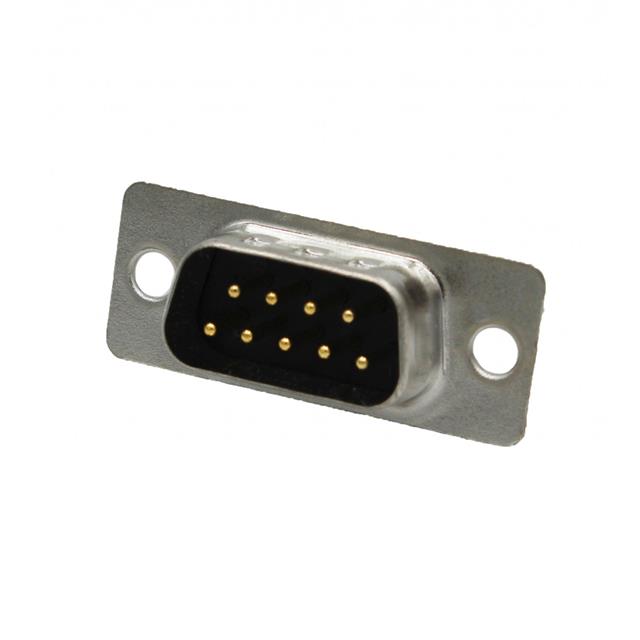

MH Connectors MHDM9SP
Images are for reference only
Manufacturer
Manufacturer No
MHDM9SP
Quantity
900
Availability
In Stock
Packaging
Tray
Description
CONN D-SUB PLUG 9POS SOLDER CUP
Detailed Description
9 Position D-Sub Plug, Male Pins Connector
Datasheet
Payment
Delivery
Mfr
MH Connectors
Color
Black
Series
MHDM
Features
Grounding Indents
Packaging
Tray
Wire Gauge
-
Termination
Solder Cup
Contact Form
-
Contact Type
Signal
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Male Pins
Contact Finish
Gold
Flange Feature
Housing/Shell (Unthreaded)
Number of Rows
2
Voltage Rating
-
Backset Spacing
-
Connector Style
D-Sub
Contact Material
Brass
Primary Material
Metal
Ingress Protection
-
Dielectric Material
Polybutylene Terephthalate (PBT), Glass Filled
Number of Positions
9
Current Rating (Amps)
5A
Operating Temperature
-55°C ~ 105°C
Shell Material, Finish
Steel, Tin-Nickel Plated
Contact Finish Thickness
-
Material Flammability Rating
UL94 V-0
Shell Size, Connector Layout
1 (DE, E)
| Attribute | Value |
|---|---|
| Mfr | MH Connectors |
| Color | Black |
| Series | MHDM |
| Features | Grounding Indents |
| Packaging | Tray |
| Wire Gauge | - |
| Termination | Solder Cup |
| Contact Form | - |
| Contact Type | Signal |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) |
| Number of Rows | 2 |
| Voltage Rating | - |
| Backset Spacing | - |
| Connector Style | D-Sub |
| Contact Material | Brass |
| Primary Material | Metal |
| Ingress Protection | - |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Number of Positions | 9 |
| Current Rating (Amps) | 5A |
| Operating Temperature | -55°C ~ 105°C |
| Shell Material, Finish | Steel, Tin-Nickel Plated |
| Contact Finish Thickness | - |
| Material Flammability Rating | UL94 V-0 |
| Shell Size, Connector Layout | 1 (DE, E) |
