Step1: Product

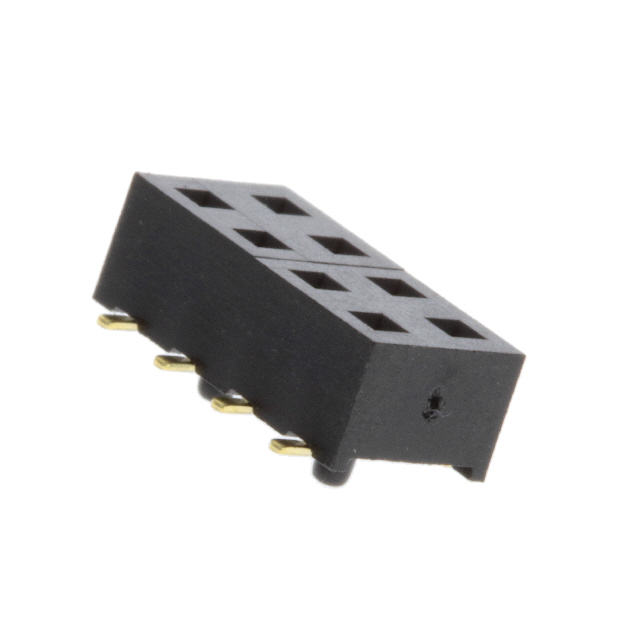

METZ CONNECT USA Inc. FM20204VBDN
Images are for reference only
Manufacturer
Manufacturer No
FM20204VBDN
Packaging
Tube
Description
RECEPTACLE, SMT, LOW PROFILE, DU
Detailed Description
8 Position Receptacle Connector 0.100" (2.54mm) Surface Mount Gold
Datasheet
Payment
Delivery
Mfr
METZ CONNECT USA Inc.
Style
Board to Board
Series
-
Features
-
Packaging
Tube
Termination
Solder
Applications
-
Contact Type
Female Socket
Contact Shape
Square
Mounting Type
Surface Mount
Connector Type
Receptacle
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.100" (2.54mm)
Voltage Rating
-
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
-
Ingress Protection
IP00
Base Product Number
FM20204VB
Insulation Material
Polyamide (PA6), Nylon 6
Number of Positions
8
Row Spacing - Mating
-
Contact Finish - Post
-
Contact Length - Post
-
Current Rating (Amps)
-
Operating Temperature
-40°C ~ 105°C
Mated Stacking Heights
-
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
-
Contact Finish Thickness - Post
-
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | METZ CONNECT USA Inc. |
| Style | Board to Board |
| Series | - |
| Features | - |
| Packaging | Tube |
| Termination | Solder |
| Applications | - |
| Contact Type | Female Socket |
| Contact Shape | Square |
| Mounting Type | Surface Mount |
| Connector Type | Receptacle |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.100" (2.54mm) |
| Voltage Rating | - |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | - |
| Ingress Protection | IP00 |
| Base Product Number | FM20204VB |
| Insulation Material | Polyamide (PA6), Nylon 6 |
| Number of Positions | 8 |
| Row Spacing - Mating | - |
| Contact Finish - Post | - |
| Contact Length - Post | - |
| Current Rating (Amps) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mated Stacking Heights | - |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | - |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - |
