Step1: Product

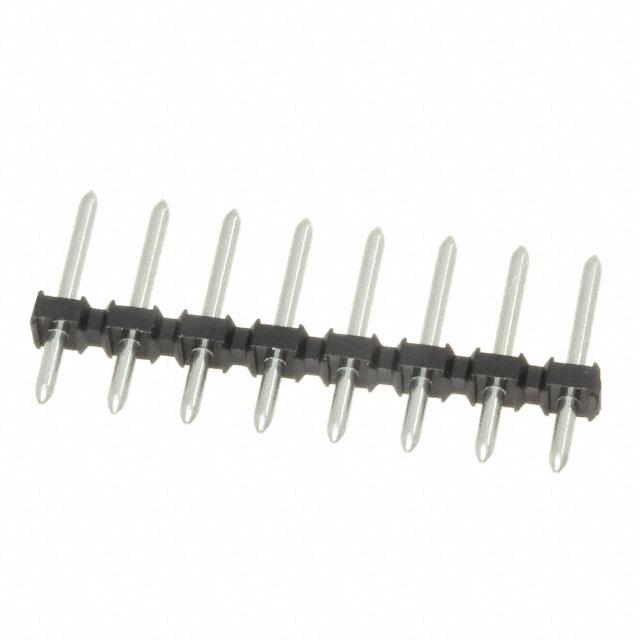

METZ CONNECT USA Inc. 31224108
Images are for reference only
Manufacturer
Manufacturer No
31224108
Quantity
18
Availability
In Stock
Packaging
Bulk
Description
TERM BLOCK HDR 8POS 3.50MM
Detailed Description
8 Position Terminal Block Header, Male Pins, Unshrouded 0.138" (3.50mm) Vertical Through Hole
Datasheet
Payment
Delivery
Type
Header, Male Pins, Unshrouded
Color
Black
Pitch
0.138" (3.50mm)
Series
-
Features
-
Packaging
Bulk
Screw Size
-
Current - UL
15 A
Manufacturer
METZ CONNECT USA Inc.
Voltage - UL
300 V
Current - IEC
-
Mounting Type
Through Hole
Torque - Screw
-
Plug Wire Entry
-
Contact Material
Copper Zinc
Housing Material
Polyamide (PA46), Nylon 4/6
Number of Levels
1
Insulation Height
0.073" (1.85mm)
Termination Style
Solder
Wire Strip Length
-
Header Orientation
Vertical
Ingress Protection
-
Contact Tail Length
0.142" (3.60mm)
Number of Positions
8
Positions Per Level
8
Contact Mating Finish
Silver
Operating Temperature
-40°C ~ 105°C
Wire Gauge or Range - AWG
-
Wire Gauge or Range - mm²
-
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Type | Header, Male Pins, Unshrouded |
| Color | Black |
| Pitch | 0.138" (3.50mm) |
| Series | - |
| Features | - |
| Packaging | Bulk |
| Screw Size | - |
| Current - UL | 15 A |
| Manufacturer | METZ CONNECT USA Inc. |
| Voltage - UL | 300 V |
| Current - IEC | - |
| Mounting Type | Through Hole |
| Torque - Screw | - |
| Plug Wire Entry | - |
| Contact Material | Copper Zinc |
| Housing Material | Polyamide (PA46), Nylon 4/6 |
| Number of Levels | 1 |
| Insulation Height | 0.073" (1.85mm) |
| Termination Style | Solder |
| Wire Strip Length | - |
| Header Orientation | Vertical |
| Ingress Protection | - |
| Contact Tail Length | 0.142" (3.60mm) |
| Number of Positions | 8 |
| Positions Per Level | 8 |
| Contact Mating Finish | Silver |
| Operating Temperature | -40°C ~ 105°C |
| Wire Gauge or Range - AWG | - |
| Wire Gauge or Range - mm² | - |
| Material Flammability Rating | UL94 V-0 |
