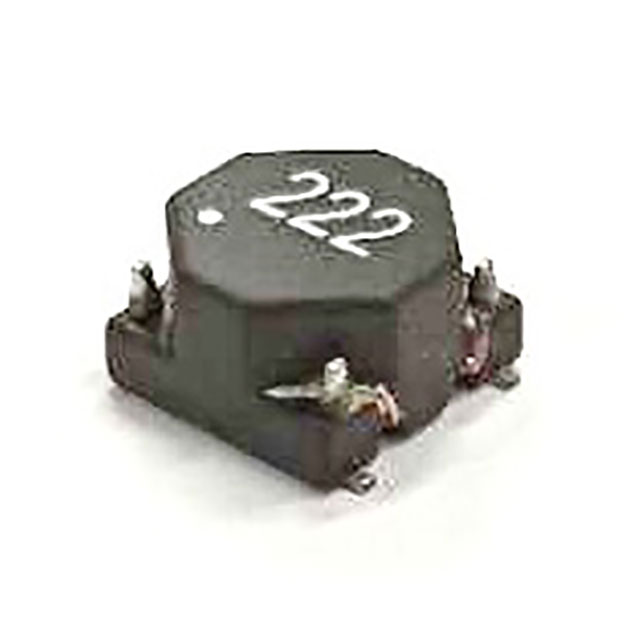

Mentech Technology USA Inc. CM633SG222N

Images are for reference only

Manufacturer

Mentech Technology USA Inc.

Manufacturer No

CM633SG222N

Packaging

Tape & Reel (TR)

Description

CMC 2.2MH 750MA 2LN SMD

Detailed Description

2.2 mH @ 100 kHz 2 Line Common Mode Choke Surface Mount 750mA DCR 300mOhm

Datasheet

CM633SG222N

Payment

Delivery

Series

-

Packaging

Tape & Reel (TR)

Filter Type

Signal Line

Height (Max)

0.220" (5.60mm)

Manufacturer

Mentech Technology USA Inc.

Mounting Type

Surface Mount

Number of Lines

2

Size / Dimension

0.374" L x 0.350" W (9.50mm x 8.90mm)

Current Rating (Max)

750mA

Operating Temperature

-40°C ~ 125°C

Inductance @ Frequency

2.2 mH @ 100 kHz

DC Resistance (DCR) (Max)

300mOhm

Attribute	Value
Series	-
Packaging	Tape & Reel (TR)
Filter Type	Signal Line
Height (Max)	0.220" (5.60mm)
Manufacturer	Mentech Technology USA Inc.
Mounting Type	Surface Mount
Number of Lines	2
Size / Dimension	0.374" L x 0.350" W (9.50mm x 8.90mm)
Current Rating (Max)	750mA
Operating Temperature	-40°C ~ 125°C
Inductance @ Frequency	2.2 mH @ 100 kHz
DC Resistance (DCR) (Max)	300mOhm
