Step1: Product

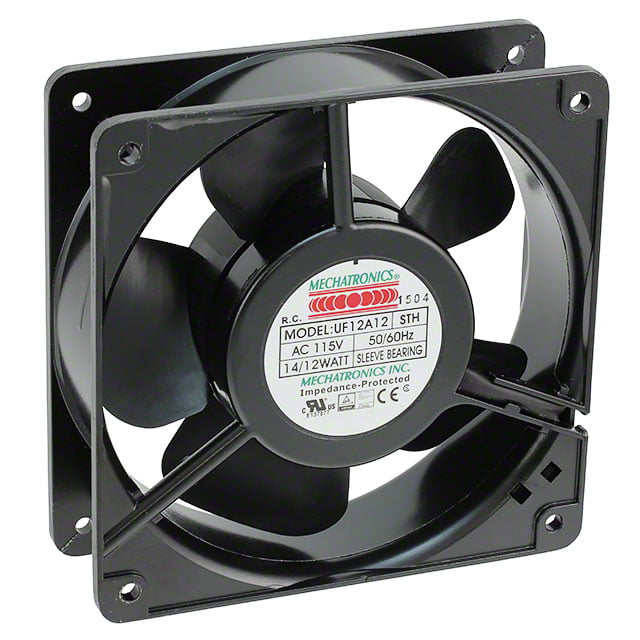

Mechatronics Fan Group UF12A12-STSLR
Images are for reference only
Manufacturer
Manufacturer No
UF12A12-STSLR
Packaging
Bulk
Description
FAN AXIAL 120X38MM 115VAC TERM
Detailed Description
Fan Tubeaxial 115VAC Square - 120mm L x 120mm H Sleeve 57.0 CFM (1.60m³/min) 2 Terminals
Datasheet
Payment
Delivery
RPM
1800 RPM
Noise
36.0dB(A)
Width
38.00mm
Series
UF12A
Weight
1.2 lbs (544.3 g)
Air Flow
57.0 CFM (1.60m³/min)
Fan Type
Tubeaxial
Features
-
Packaging
Bulk
Termination
2 Terminals
Bearing Type
Sleeve
Manufacturer
Mechatronics Fan Group
Power (Watts)
6.00W
Voltage Range
-
Approval Agency
CE, cUL, TUV, UL
Static Pressure
0.090 in H2O (22.4 Pa)
Voltage - Rated
115VAC
Lifetime @ Temp.
50000 Hrs @ 25°C
Material - Blade
Polybutylene Terephthalate (PBT)
Material - Frame
Aluminum
Size / Dimension
Square - 120mm L x 120mm H
Ingress Protection
-
Base Product Number
UF12A
Current Rating (Amps)
0.060A
Operating Temperature
-40 ~ 158°F (-40 ~ 70°C)
| Attribute | Value |
|---|---|
| RPM | 1800 RPM |
| Noise | 36.0dB(A) |
| Width | 38.00mm |
| Series | UF12A |
| Weight | 1.2 lbs (544.3 g) |
| Air Flow | 57.0 CFM (1.60m³/min) |
| Fan Type | Tubeaxial |
| Features | - |
| Packaging | Bulk |
| Termination | 2 Terminals |
| Bearing Type | Sleeve |
| Manufacturer | Mechatronics Fan Group |
| Power (Watts) | 6.00W |
| Voltage Range | - |
| Approval Agency | CE, cUL, TUV, UL |
| Static Pressure | 0.090 in H2O (22.4 Pa) |
| Voltage - Rated | 115VAC |
| Lifetime @ Temp. | 50000 Hrs @ 25°C |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Material - Frame | Aluminum |
| Size / Dimension | Square - 120mm L x 120mm H |
| Ingress Protection | - |
| Base Product Number | UF12A |
| Current Rating (Amps) | 0.060A |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
