Step1: Product

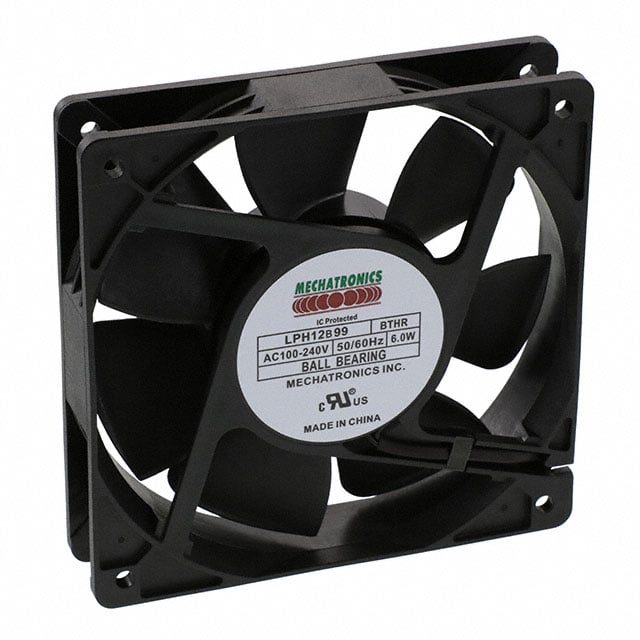

Mechatronics Fan Group LPH12B99-BWHR-B1
Images are for reference only
Manufacturer
Manufacturer No
LPH12B99-BWHR-B1
Packaging
Bulk
Description
EC FAN 120X38MM 100-240VAC TACH
Detailed Description
Fan Tubeaxial 100 ~ 240VAC Square - 120mm L x 120mm H Ball 79.0 CFM (2.21m³/min) 3 Wire Leads
Datasheet
Payment
Delivery
RPM
3000 RPM
Noise
44.0dB(A)
Width
25.50mm
Series
LPH12B99
Weight
0.325 lb (147.42 g)
Air Flow
79.0 CFM (2.21m³/min)
Fan Type
Tubeaxial
Features
Auto Restart, Electronic Commutation (EC), Speed Sensor (Tach)
Packaging
Bulk
Termination
3 Wire Leads
Bearing Type
Ball
Manufacturer
Mechatronics Fan Group
Power (Watts)
6.00W
Voltage Range
-
Approval Agency
-
Static Pressure
0.180 in H2O (44.8 Pa)
Voltage - Rated
100 ~ 240VAC
Lifetime @ Temp.
-
Material - Blade
Plastic
Material - Frame
Plastic
Size / Dimension
Square - 120mm L x 120mm H
Ingress Protection
-
Base Product Number
LPH12
Current Rating (Amps)
0.100A
Operating Temperature
-
| Attribute | Value |
|---|---|
| RPM | 3000 RPM |
| Noise | 44.0dB(A) |
| Width | 25.50mm |
| Series | LPH12B99 |
| Weight | 0.325 lb (147.42 g) |
| Air Flow | 79.0 CFM (2.21m³/min) |
| Fan Type | Tubeaxial |
| Features | Auto Restart, Electronic Commutation (EC), Speed Sensor (Tach) |
| Packaging | Bulk |
| Termination | 3 Wire Leads |
| Bearing Type | Ball |
| Manufacturer | Mechatronics Fan Group |
| Power (Watts) | 6.00W |
| Voltage Range | - |
| Approval Agency | - |
| Static Pressure | 0.180 in H2O (44.8 Pa) |
| Voltage - Rated | 100 ~ 240VAC |
| Lifetime @ Temp. | - |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Size / Dimension | Square - 120mm L x 120mm H |
| Ingress Protection | - |
| Base Product Number | LPH12 |
| Current Rating (Amps) | 0.100A |
| Operating Temperature | - |
