Step1: Product

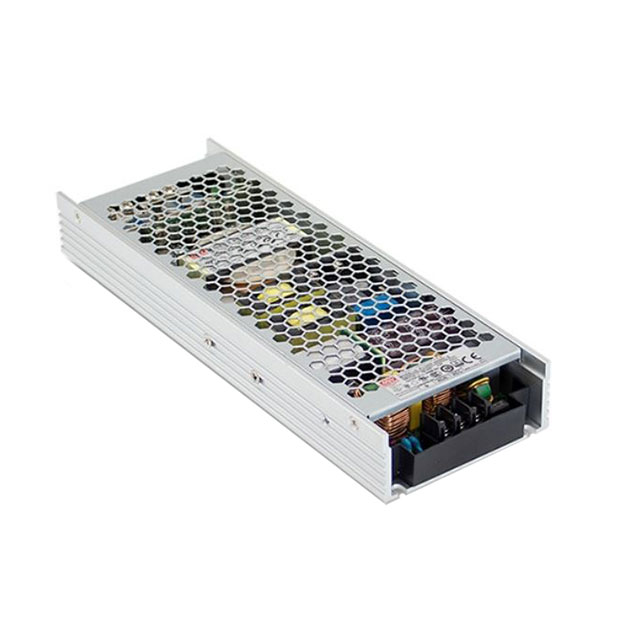

MEAN WELL USA Inc. UHP-500-55
Images are for reference only
Manufacturer
Manufacturer No
UHP-500-55
Packaging
Bulk
Description
AC/DC CONVERTER 55V 490W
Detailed Description
Enclosed AC DC Converters 1 Output 55V 90 ~ 264 VAC, 127 ~ 370 VDC Input
Datasheet
Payment
Delivery
Mfr
MEAN WELL USA Inc.
Type
Enclosed
Series
UHP-500 (500W)
Features
Adjustable Output, PFC, Universal Input
Packaging
Bulk
Efficiency
95%
Applications
Household Appliances, ITE (Commercial)
Mounting Type
Chassis Mount
Power (Watts)
490W
Approval Agency
CB, CCC, CE, cURus, EAC, TUV
Standard Number
62368-1
Voltage - Input
90 ~ 264 VAC, 127 ~ 370 VDC
Size / Dimension
9.13" L x 3.19" W x 1.22" H (232.0mm x 81.0mm x 31.0mm)
Number of Outputs
1
Current - Output 1
8.9 A
Voltage - Output 1
55V
Voltage - Output 2
-
Voltage - Output 3
-
Voltage - Output 4
-
Voltage - Output 5
-
Voltage - Output 6
-
Base Product Number
UHP-500
Voltage - Isolation
3.75 kV
Minimum Load Required
-
Operating Temperature
-30°C ~ 70°C (With Derating)
| Attribute | Value |
|---|---|
| Mfr | MEAN WELL USA Inc. |
| Type | Enclosed |
| Series | UHP-500 (500W) |
| Features | Adjustable Output, PFC, Universal Input |
| Packaging | Bulk |
| Efficiency | 95% |
| Applications | Household Appliances, ITE (Commercial) |
| Mounting Type | Chassis Mount |
| Power (Watts) | 490W |
| Approval Agency | CB, CCC, CE, cURus, EAC, TUV |
| Standard Number | 62368-1 |
| Voltage - Input | 90 ~ 264 VAC, 127 ~ 370 VDC |
| Size / Dimension | 9.13" L x 3.19" W x 1.22" H (232.0mm x 81.0mm x 31.0mm) |
| Number of Outputs | 1 |
| Current - Output 1 | 8.9 A |
| Voltage - Output 1 | 55V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Base Product Number | UHP-500 |
| Voltage - Isolation | 3.75 kV |
| Minimum Load Required | - |
| Operating Temperature | -30°C ~ 70°C (With Derating) |
