Step1: Product

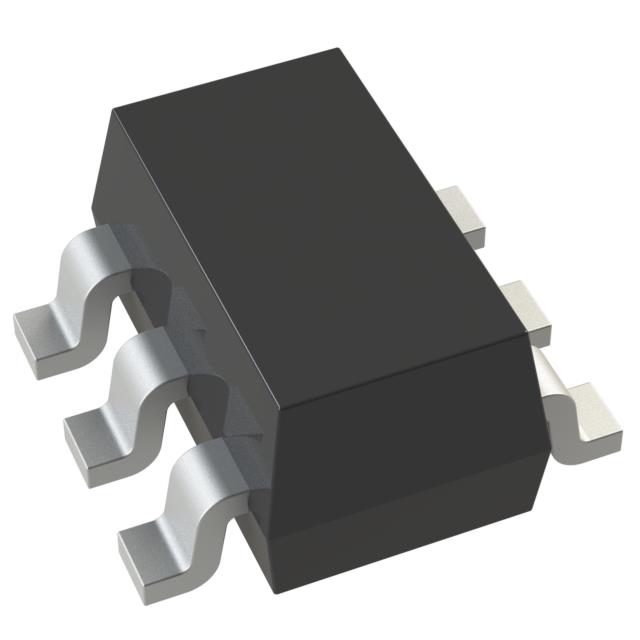

MCC (Micro Commercial Components) SD103ATW-TP
Images are for reference only
Manufacturer
Manufacturer No
SD103ATW-TP
Quantity
2,420
Availability
In Stock
Package
6-TSSOP, SC-88, SOT-363
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
DIODE ARR SCHOT 40V 175MA SOT363
Detailed Description
Diode Array 3 Independent 40 V 175mA Surface Mount 6-TSSOP, SC-88, SOT-363
Datasheet
Payment
Delivery
Speed
Small Signal =< 200mA (Io), Any Speed
Series
-
Packaging
Tape & Reel (TR); Cut Tape (CT)
Technology
Schottky
Manufacturer
MCC (Micro Commercial Components)
Mounting Type
Surface Mount
Package / Case
6-TSSOP, SC-88, SOT-363
Base Product Number
SD103
Diode Configuration
3 Independent
Supplier Device Package
SOT-363
Reverse Recovery Time (trr)
10 ns
Current - Reverse Leakage @ Vr
5 µA @ 30 V
Voltage - DC Reverse (Vr) (Max)
40 V
Operating Temperature - Junction
125°C (Max)
Voltage - Forward (Vf) (Max) @ If
500 mV @ 100 mA
Current - Average Rectified (Io) (per Diode)
175mA
| Attribute | Value |
|---|---|
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Series | - |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Technology | Schottky |
| Manufacturer | MCC (Micro Commercial Components) |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Base Product Number | SD103 |
| Diode Configuration | 3 Independent |
| Supplier Device Package | SOT-363 |
| Reverse Recovery Time (trr) | 10 ns |
| Current - Reverse Leakage @ Vr | 5 µA @ 30 V |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Operating Temperature - Junction | 125°C (Max) |
| Voltage - Forward (Vf) (Max) @ If | 500 mV @ 100 mA |
| Current - Average Rectified (Io) (per Diode) | 175mA |
