Step1: Product

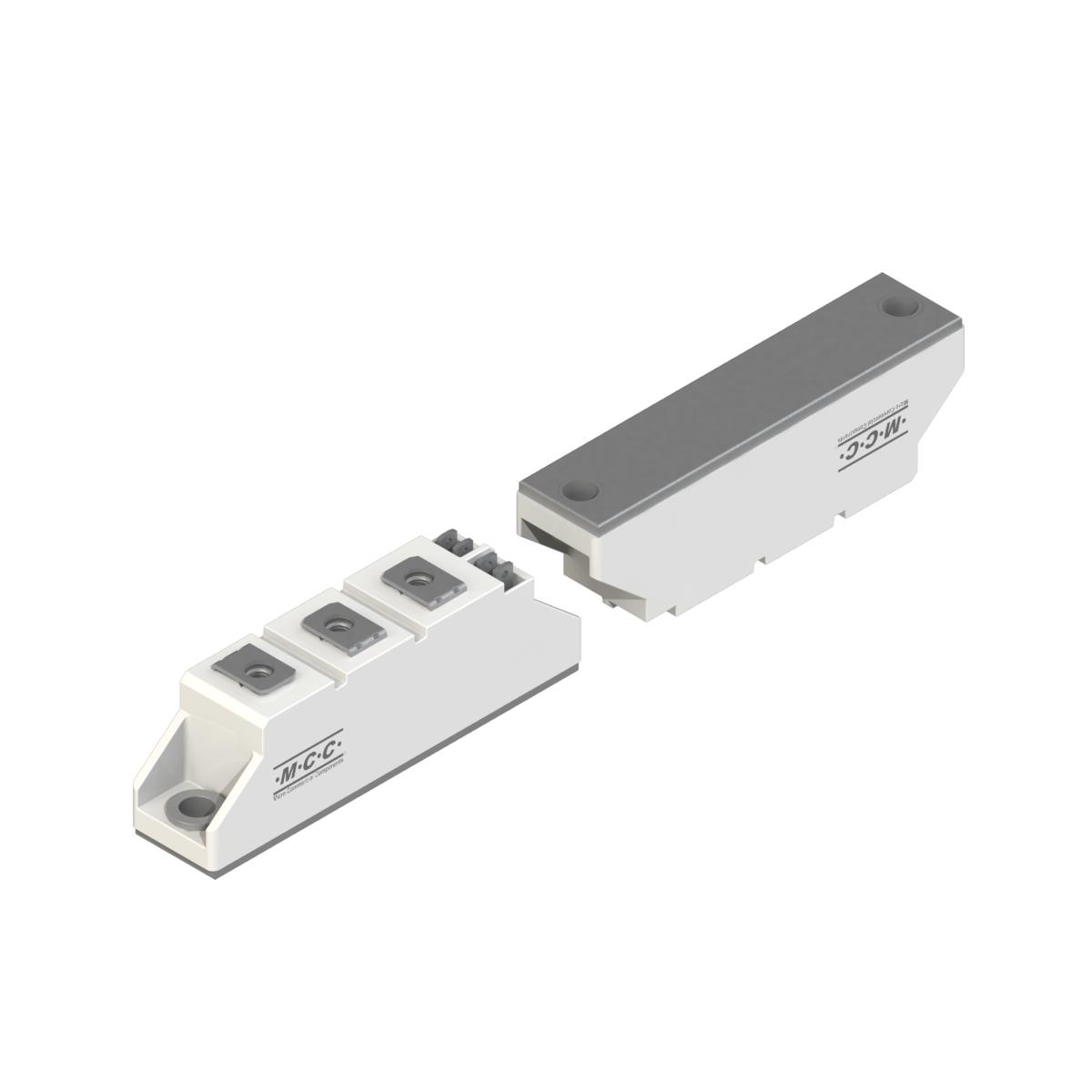

MCC (Micro Commercial Components) MT25CB16T1-BP
Images are for reference only
Manufacturer
Manufacturer No
MT25CB16T1-BP
Availability
In Stock
Package
T1
Packaging
Bulk
Description
SCR MODULE 1.6KV T1
Detailed Description
SCR Module 1.6 kV Series Connection - SCR/Diode Chassis Mount T1
Datasheet
Payment
Delivery
Series
-
Packaging
Bulk
Structure
Series Connection - SCR/Diode
Manufacturer
MCC (Micro Commercial Components)
Mounting Type
Chassis Mount
Package / Case
T1
Base Product Number
MT25CB16
Voltage - Off State
1.6 kV
Operating Temperature
-40°C ~ 125°C (TJ)
Number of SCRs, Diodes
1 SCR, 1 Diode
Current - Hold (Ih) (Max)
200 mA
Current - Gate Trigger (Igt) (Max)
150 mA
Current - On State (It (AV)) (Max)
25 A
Voltage - Gate Trigger (Vgt) (Max)
2.5 V
Current - Non Rep. Surge 50, 60Hz (Itsm)
550A @ 50Hz
| Attribute | Value |
|---|---|
| Series | - |
| Packaging | Bulk |
| Structure | Series Connection - SCR/Diode |
| Manufacturer | MCC (Micro Commercial Components) |
| Mounting Type | Chassis Mount |
| Package / Case | T1 |
| Base Product Number | MT25CB16 |
| Voltage - Off State | 1.6 kV |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Number of SCRs, Diodes | 1 SCR, 1 Diode |
| Current - Hold (Ih) (Max) | 200 mA |
| Current - Gate Trigger (Igt) (Max) | 150 mA |
| Current - On State (It (AV)) (Max) | 25 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2.5 V |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 550A @ 50Hz |
