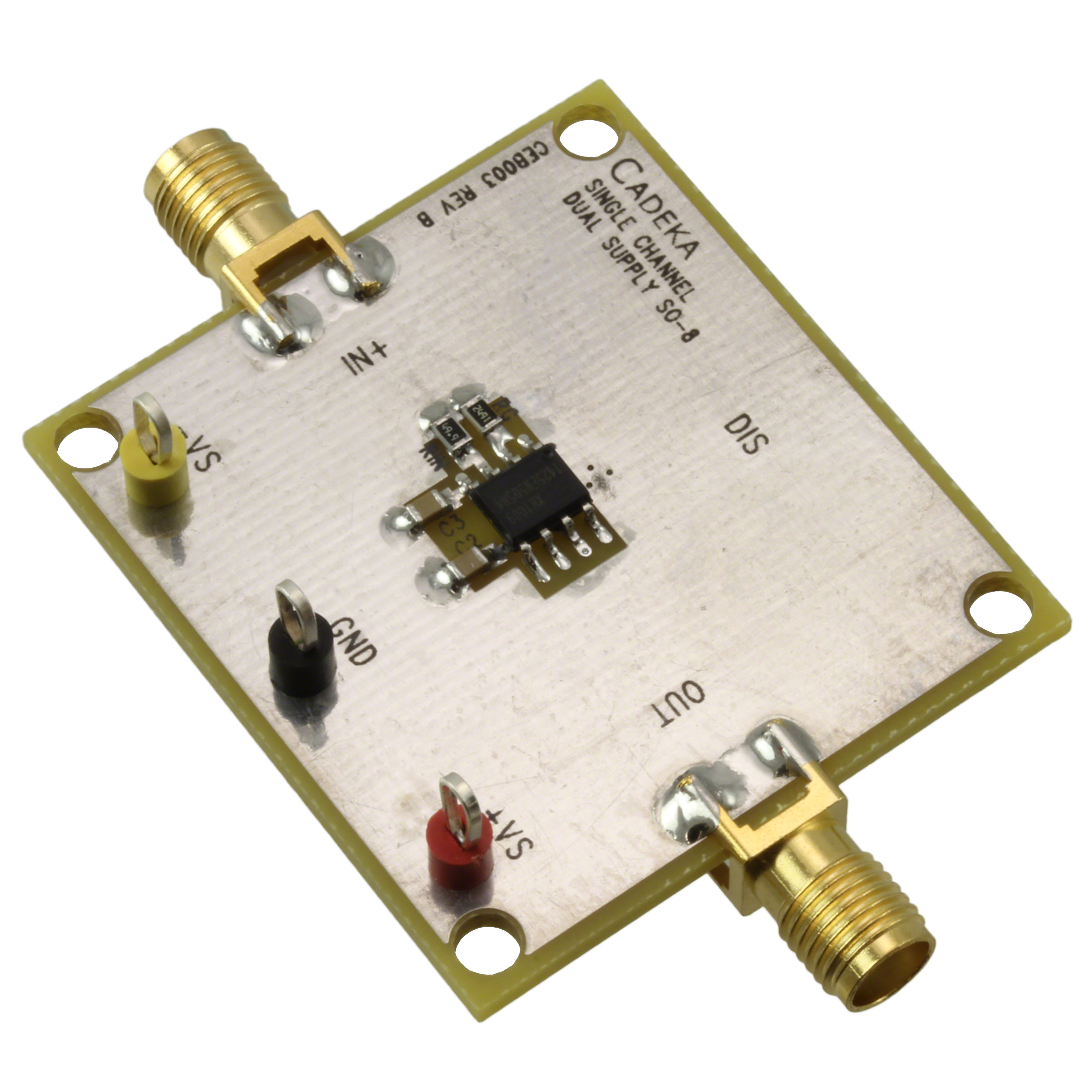

MaxLinear, Inc. XR1009ISO8EVB

Images are for reference only

Manufacturer

MaxLinear, Inc.

Manufacturer No

XR1009ISO8EVB

Packaging

Box

Description

BOARD EVALUATION XR1009ISO8

Detailed Description

XR1009 - 1 - Single Channels per IC Voltage Feedback Amplifier Evaluation Board

Datasheet

XR1009ISO8EVB

Payment

Delivery

Note

-

Series

-

Contents

Board(s)

Packaging

Box

Slew Rate

27V/µs

Output Type

Single-Ended, Rail-to-Rail

Manufacturer

MaxLinear, Inc.

-3db Bandwidth

18MHz

Amplifier Type

Voltage Feedback

Channels per IC

1 - Single

Utilized IC / Part

XR1009

Base Product Number

XR1009

Gain Bandwidth Product

20MHz

Current - Output / Channel

8.5mA

Current - Supply (Main IC)

208µA

Voltage - Supply, Single/Dual (±)

2.5V ~ 5.5V, ±1.25V ~ 2.75V

Attribute	Value
Note	-
Series	-
Contents	Board(s)
Packaging	Box
Slew Rate	27V/µs
Output Type	Single-Ended, Rail-to-Rail
Manufacturer	MaxLinear, Inc.
-3db Bandwidth	18MHz
Amplifier Type	Voltage Feedback
Channels per IC	1 - Single
Utilized IC / Part	XR1009
Base Product Number	XR1009
Gain Bandwidth Product	20MHz
Current - Output / Channel	8.5mA
Current - Supply (Main IC)	208µA
Voltage - Supply, Single/Dual (±)	2.5V ~ 5.5V, ±1.25V ~ 2.75V
