Step1: Product

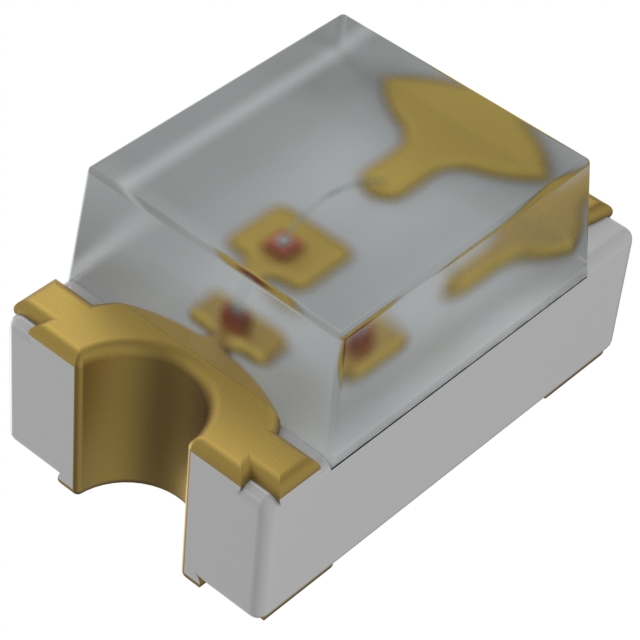

Lumex Opto/Components Inc. SML-LX0805GC-TR
Images are for reference only
Manufacturer
Manufacturer No
SML-LX0805GC-TR
Quantity
5
Availability
In Stock
Package
0805 (2012 Metric)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
LED GREEN CLEAR SMD
Detailed Description
Green LED Indication - Discrete 2.2V 0805 (2012 Metric)
Datasheet
Payment
Delivery
Mfr
Lumex Opto/Components Inc.
Color
Green
Series
-
Features
-
Lens Size
1.40mm x 1.25mm
Packaging
Tape & Reel (TR); Cut Tape (CT)
Lens Color
Colorless
Lens Style
Rectangle with Flat Top
Height (Max)
1.20mm
Configuration
Standard
Mounting Type
Surface Mount
Viewing Angle
140°
Current - Test
20mA
Package / Case
0805 (2012 Metric)
Size / Dimension
2.00mm L x 1.25mm W
Lens Transparency
Clear
Wavelength - Peak
565nm
Base Product Number
SML-LX0805
Millicandela Rating
10mcd
Wavelength - Dominant
-
Supplier Device Package
-
Voltage - Forward (Vf) (Typ)
2.2V
| Attribute | Value |
|---|---|
| Mfr | Lumex Opto/Components Inc. |
| Color | Green |
| Series | - |
| Features | - |
| Lens Size | 1.40mm x 1.25mm |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Lens Color | Colorless |
| Lens Style | Rectangle with Flat Top |
| Height (Max) | 1.20mm |
| Configuration | Standard |
| Mounting Type | Surface Mount |
| Viewing Angle | 140° |
| Current - Test | 20mA |
| Package / Case | 0805 (2012 Metric) |
| Size / Dimension | 2.00mm L x 1.25mm W |
| Lens Transparency | Clear |
| Wavelength - Peak | 565nm |
| Base Product Number | SML-LX0805 |
| Millicandela Rating | 10mcd |
| Wavelength - Dominant | - |
| Supplier Device Package | - |
| Voltage - Forward (Vf) (Typ) | 2.2V |
